| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45,200 pcs
|
45200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

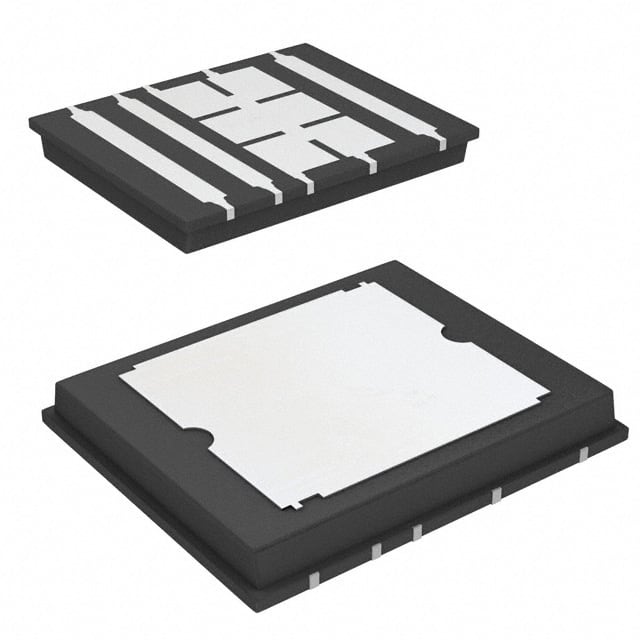

The Vishay Dale SIE848DF-T1-E3 is a single N-Channel MOSFET from the TrenchFET® series. It is designed for efficient power switching applications, offering a drain-source voltage (Vdss) of 30V and a continuous drain current (Id) of 60A at 25°C case temperature.
Key electrical characteristics include a low on-resistance (Rds On) of 1.6mOhm at 25A and 10V, a gate threshold voltage (Vgs(th)) of 2.5V at 250µA, and a maximum gate-source voltage (Vgs) of ±20V. The input capacitance (Ciss) is 6100 pF at 15V, and the gate charge (Qg) is 138 nC at 10V.
This MOSFET operates within a temperature range of -55°C to 150°C (TJ). It is housed in a 10-PolarPAK® (L) package and is designed for surface mounting. The maximum power dissipation is 5.2W (ambient) or 125W (case temperature).
Compliance includes RoHS3, MSL 1, and REACH Unaffected status. The component is supplied in Tape & Reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) is 30 V.
The continuous drain current (Id) is 60A at 25°C case temperature.
The Rds On is a maximum of 1.6mOhm when the drain current is 25A and gate-source voltage is 10V.
The operating temperature range is -55°C to 150°C (TJ).
It is supplied in a 10-PolarPAK® (L) package.
Yes, it is RoHS3 Compliant.
