| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Material | |
| Mounting Type | |
| Number of Contacts | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style |

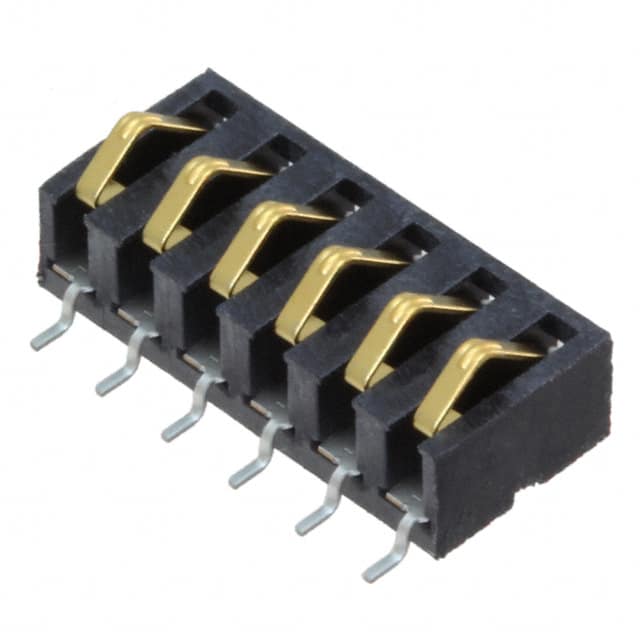

This component is a 6-position, single-row spring loaded connector from Samtec's SIB series. It uses a non-gendered compression contact design with a 2.54mm (0.100 inch) pitch, making it suitable for board-to-board connections where a low profile and high reliability are required.
The contacts are made of phosphor bronze with a gold flash finish, ensuring excellent conductivity and corrosion resistance. The connector is surface mount and terminates via solder, compatible with standard reflow processes. The compact single-row configuration saves board space.
This connector is designed for applications requiring a reliable, blind-mate interface. The spring-loaded contacts accommodate axial misalignment and provide consistent force. Suitable for use in a variety of electronic assemblies where high-density interconnects are necessary.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.61 | $4.61 |
| 25+ | $4.17 | $4.17 |
| 37+ | $3.64 | $3.64 |
| 111+ | $3.47 | $3.47 |
| 518+ | $2.62 | $2.62 |
| 1,036+ | $2.36 | $2.36 |
| 2,516+ | $2.34 | $2.34 |
| 5,032+ | $2.15 | $2.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
2.54mm (0.100 inches).
Surface mount with solder termination.
Gold flash over phosphor bronze.
Yes, listed as RoHS3 compliant (unverified).
MSL 1 - Unlimited.
