| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Gate Type | |
| Input Type | |
| Lead Style | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| SVHC Present | |
| Voltage |

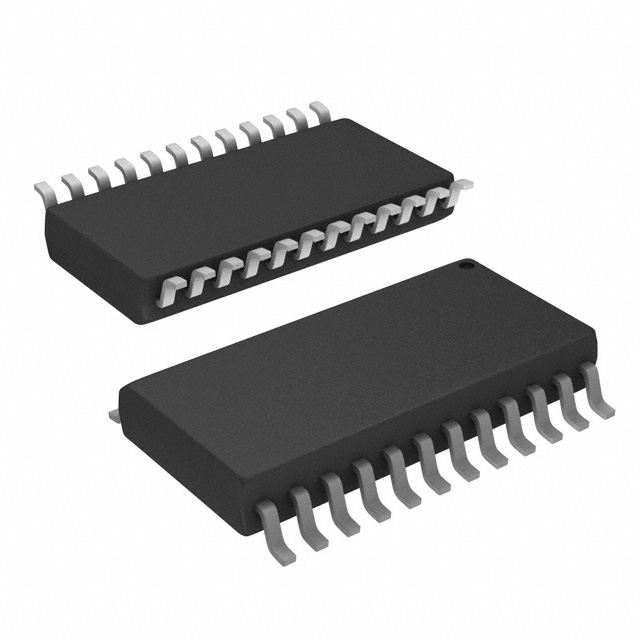

The SI9978DW-T1-E3 from Vishay Siliconix is a gate driver integrated circuit featuring a half-bridge configuration. It is designed for power management applications and supports N-channel MOSFET gate types. The device operates within a supply voltage range of 14.5V to 17.5V and a logic voltage range of 1V to 4V.
Key electrical characteristics include a rise/fall time of 110ns and 50ns, respectively, and a maximum bootstrap voltage of 40V. It has four drivers and is suitable for synchronous high-side channel types. The operating temperature range is from -40°C to 150°C (TJ).
This component is available in a 24-SOIC package, designed for surface mounting. It is supplied on tape and reel. The product status is listed as obsolete.
Environmental compliance includes RoHS3 compliance and a Moisture Sensitivity Level (MSL) of 1. The REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 150°C (TJ).
The supply voltage is between 14.5V and 17.5V.
It uses N-Channel MOSFET gates.
It is a surface mount device in a 24-SOIC package.
Yes, it is RoHS3 Compliant.
