| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
2,985 pcs
|
2985 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,298 pcs
|
1298 pcs | On Request | 1 | On Request | On Request | 1318 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| FET Feature | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| SVHC Present | |
| Supplier Device Package | |
| Technology | |
| Vgs(th) (Max) @ Id |

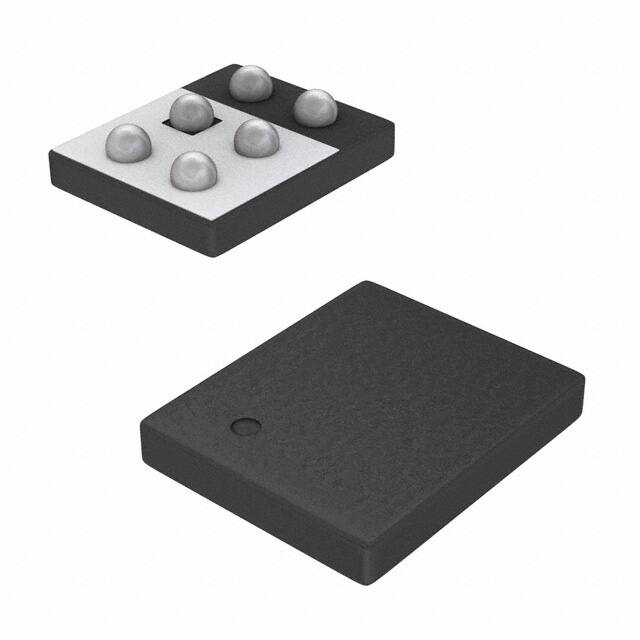

The Vishay Dale SI8901EDB-T2-E1 is a dual P-channel MOSFET array belonging to the TrenchFET® series. This component is designed for surface mount applications and features a drain-to-source voltage (Vdss) of 20V.
With a continuous drain current (Id) of 3.5A at 25°C, this MOSFET array is suitable for power management and switching applications. It operates within a temperature range of -55°C to 150°C (TJ) and has a maximum power dissipation of 1W. The gate threshold voltage (Vgs(th)) is specified at 1V @ 350µA, and it features logic level gate functionality.
The device is housed in a compact 6-MICRO FOOT®CSP package, with a supplier device package size of 6-Micro Foot™ (2.36x1.56). It is supplied in cut tape packaging.
This MOSFET array is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20V.
3.5A at 25°C.
1W.
-55°C to 150°C (junction).
1V maximum at 350µA.
6-Micro Foot™ (2.36x1.56) chip-scale package.
2 P-Channel (Dual) Common Drain with Logic Level Gate.
