| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25,000 pcs
|
25000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The Vishay Dale SI8489EDB-T2-E1 is a P-Channel MOSFET designed for applications requiring efficient power switching. It features a Drain-Source Voltage (Vdss) of 20V and a low on-resistance of 44mOhm at a gate-source voltage of 10V and a drain current of 1.5A. The device can handle a continuous drain current of up to 3.06A at 25°C ambient temperature.

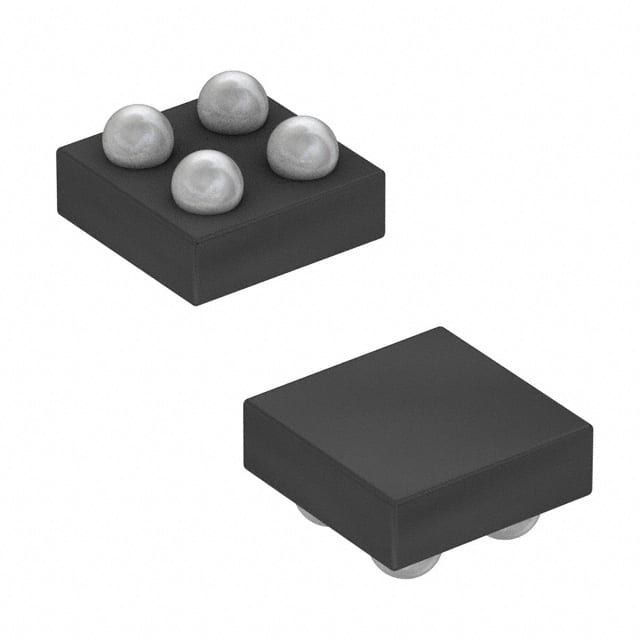

This MOSFET is housed in a small 4-UFBGA (4-Microfoot) package, suitable for surface mounting. Its operating temperature range is from -55°C to 150°C (TJ). Key electrical characteristics include a gate charge of 27nC (max) at 10V and an input capacitance of 765pF (max) at 10V. The device also offers typical ESD protection of 2500V HBM.
Applications for the SI8489EDB-T2-E1 include load switches, charger switches, and battery management systems, particularly in portable electronics like smartphones and tablet PCs. Its TrenchFET power MOSFET technology contributes to its performance and small outline area.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Drain-Source Breakdown Voltage is -20 V.
The maximum Gate-Source Voltage is ±12V.
The maximum On-Resistance is 44mOhm at 1.5A, 10V.
The continuous drain current is 3.06A at 25°C ambient temperature.
The operating temperature range is -55°C to 150°C (TJ).
The package type is 4-UFBGA, also referred to as 4-Microfoot.
This component is designed for surface mounting.
