| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,841 pcs
|
9841 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
2,810 pcs
|
2810 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,760 pcs
|
2760 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Propagation Delay | |
| Technology |

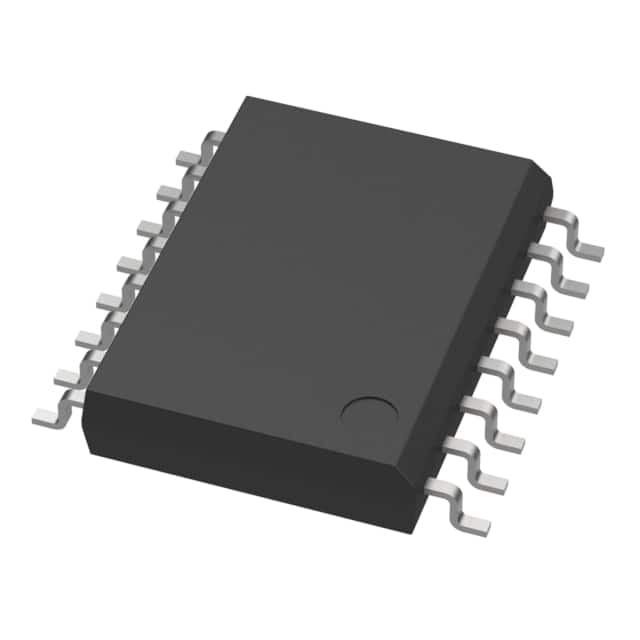

The Skyworks Solutions Inc. SI8233BD-D-ISR is a dual isolated gate driver designed for high-performance applications. It integrates two independent, isolated drivers into a single 16-SOIC package, providing up to 5000Vrms input-to-output isolation.
This device offers a peak output current of 4.0 A and operates with a supply voltage range of 9.4V to 24V. Key electrical characteristics include a maximum propagation delay of 60ns for both rising and falling edges, and a typical rise/fall time of 12ns. It also boasts a minimum common mode transient immunity of 20kV/µs.
The SI8233BD-D-ISR is suitable for a wide range of isolated MOSFET/IGBT gate drive applications. Its operating temperature range is -40°C to 125°C, making it robust for various environments. The component is surface-mounted and supplied on tape and reel.
Applications include power delivery systems, motor control, isolated DC-DC power supplies, and solar/industrial inverters. Automotive-grade versions are available for specific part numbers, built with automotive-specific manufacturing flows for enhanced robustness.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SI8233BD-D-ISR has an isolation voltage rating of 5000 V RMS.
The SI8233BD-D-ISR has a peak output current of 4.0 A.
The operating temperature range for the SI8233BD-D-ISR is -40°C to 125°C.
The SI8233BD-D-ISR is supplied in a 16-SOIC (0.295") package, mounted on tape and reel.
The SI8233BD-D-ISR features 2 independent isolated channels.
