| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29,161 pcs
|
29161 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10,020 pcs
|
10020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,810 pcs
|
2810 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,484 pcs
|
1484 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs(th) (Max) @ Id |
The Vishay SI7997DP-T1-GE3 is a dual P-channel MOSFET designed for battery and load switching applications, particularly in notebook PCs. It utilizes TrenchFET power MOSFET technology and is optimized for PWM applications.
This device offers a drain-source voltage (Vds) of -30V and a continuous drain current (Id) of up to -60A. The on-resistance (Rds On) is as low as 5.5mOhm at a gate-source voltage (Vgs) of -10V, and 7.8mOhm at -4.5V Vgs. The gate charge (Qg) is typically 51nC.
Key electrical parameters include a gate-source voltage range of ±20V. The device operates within a junction temperature range of -55°C to 150°C. It has a maximum power dissipation of 46W.

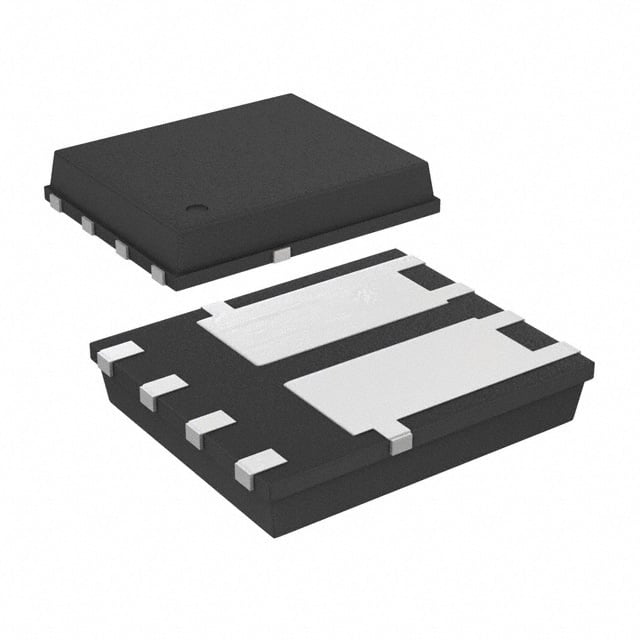

The MOSFET is housed in a PowerPAK SO-8 Dual package, designed for surface mounting. This package offers efficient thermal performance with a junction-to-case thermal resistance of 2.7°C/W.
The operating temperature range is -55°C to 150°C.
The Rds On (Max) is 5.5mOhm at Vgs = -10V.
The continuous drain current is -60A.
The package type is PowerPAK SO-8 Dual.
The RoHS status is RoHS3 Compliant.
