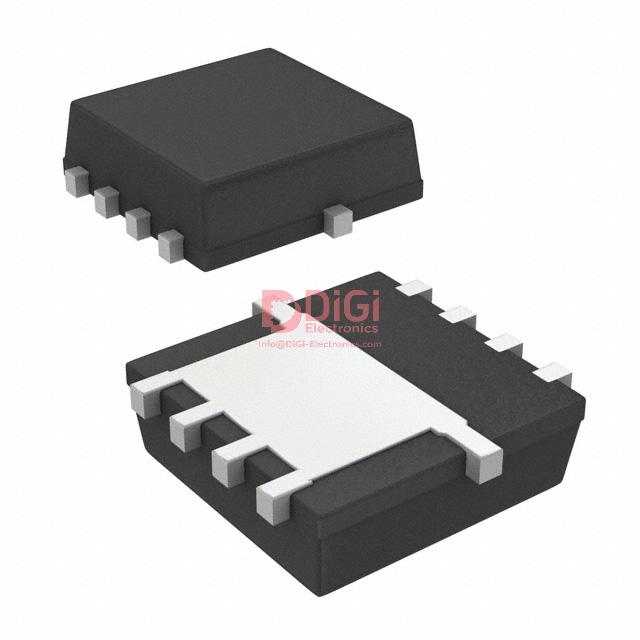

SI7802DN-T1-E3 The Vishay Siliconix SI7802DN-T1-E3 is an N-Channel MOSFET with a 250V drain-source voltage and 1.24A continuous drain current. It features a surface mount PowerPAK® 1212-8 package.
Mfr Part #:

SI7802DN-T1-E3

Available from 1 distributors
Mfr Name: Siliconix
Siliconix
The Vishay Siliconix SI7802DN-T1-E3 is an N-Channel MOSFET with a 250V drain-source voltage and 1.24A continuous drain current. It features a surface mount PowerPAK® 1212-8 package.
✓ Total Stock: 1,120 pcs
$ Price Range: $2.60

SI7802DN-T1-E3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
1,120 pcs
1120 pcs On Request 1 On Request On Request On Request On Request On Request

SI7802DN-T1-E3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
SVHC Present
Tape & Reel

SI7802DN-T1-E3 Description

Short technical summary and product information.

This Vishay Siliconix SI7802DN-T1-E3 is an N-Channel MOSFET designed for various electronic applications. It offers a drain-to-source voltage of 250V and a continuous drain current of 1.24A at 25°C.



The MOSFET operates with drive voltages between 6V and 10V, and has a maximum Rds On of 435mOhm at 1.95A and 10V. The gate threshold voltage is a maximum of 3.6V at 250µA, and the gate charge is a maximum of 21 nC at 10V. The maximum gate-source voltage is ±20V.



With a maximum power dissipation of 1.5W at 25°C, this component is suitable for applications requiring moderate power handling. It operates within a temperature range of -55°C to 150°C.



The SI7802DN-T1-E3 is housed in a surface mount PowerPAK® 1212-8 package, facilitating integration into compact circuit designs.

SI7802DN-T1-E3 Quick Information

Product Type: MOSFET
Series: TrenchFET®
Canonical Name: SI7802DN-T1-E3 N-Channel MOSFET
Subcategory: Single FETs, MOSFETs

SI7802DN-T1-E3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SI7802DN-T1-E3 Estimated Pricing

Qty Low High
1+ $2.60 $2.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

SI7802DN-T1-E3 Features

  • N-Channel MOSFET technology.
  • 250V drain-to-source voltage rating.
  • 1.24A continuous drain current.
  • Surface mount PowerPAK® 1212-8 package.
  • Wide operating temperature range.

SI7802DN-T1-E3 Applications

  • Suitable for power switching applications.
  • Used in electronic circuit designs.
  • Ideal for surface mount assemblies.
  • Component for discrete semiconductor circuits.

SI7802DN-T1-E3 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-to-source voltage for the SI7802DN-T1-E3?

The drain-to-source voltage is 250V.

What is the continuous drain current at 25°C for the SI7802DN-T1-E3?

The continuous drain current is 1.24A at 25°C.

What is the maximum Rds On for the SI7802DN-T1-E3?

The maximum Rds On is 435mOhm at 1.95A and 10V.

What is the operating temperature range for the SI7802DN-T1-E3?

The operating temperature range is -55°C to 150°C.

What type of package is the SI7802DN-T1-E3 in?

The SI7802DN-T1-E3 is in a PowerPAK® 1212-8 surface mount package.

What is the RoHS status of the SI7802DN-T1-E3?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the SI7802DN-T1-E3?

The Moisture Sensitivity Level is 1 Unlimited.
