| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
130,233 pcs
|
130233 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,983 pcs
|
1983 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| High Accuracy Temperature Sensor | |
| Humidity Range | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Output Type | |
| Precision Relative Humidity Sensor | |
| Response Time | |
| Sensor Type | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage | |
| operating_range (@ RH) | |
| operating_range (@ Temperature) |

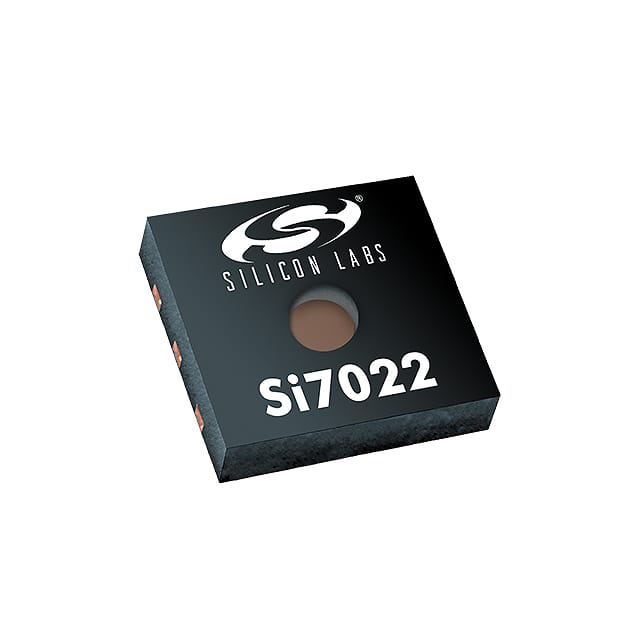

The Si7022-A20-IM1R from Silicon Labs is a monolithic CMOS IC integrating humidity and temperature sensor elements with an analog-to-digital converter and signal processing. It features a PWM output that can be filtered to produce an analog voltage output. This sensor is factory-calibrated, ensuring interchangeability without recalibration.
Key specifications include a precision relative humidity sensor with ±4% RH maximum accuracy over a 0-80% RH range, and a high-accuracy temperature sensor with ±0.4°C maximum accuracy from -10°C to 85°C. The device operates over a wide temperature range of -40°C to +125°C and a humidity range of 0 to 100% RH. It operates from a wide supply voltage of 1.9V to 3.6V and consumes low power.
The Si7022-A20-IM1R is available in a 3x3 mm DFN package and is reflow solderable. It is designed as a drop-in upgrade for existing RH/temperature sensors in similar packages, offering precision sensing and lower power consumption. An optional factory-installed cover can protect the sensor during assembly and use, excluding liquids and particulates.
This sensor is ideal for applications such as HVAC/R, thermostats, respiratory therapy, white goods, indoor weather stations, micro-environments, automotive climate control, and asset tracking.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.69 | $1.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.9V to 3.6V.
The operating temperature range is -40°C to 125°C.
The humidity measurement range is 0 to 100% RH.
The humidity sensor has a maximum accuracy of ±4% RH over the 0-80% RH range.
The temperature sensor has a maximum accuracy of ±0.4°C over the -10°C to 85°C range.
The SI7022-A20-IM1R provides a PWM output.
The SI7022-A20-IM1R is a surface mount device.
