| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Differential | |
| Divider | |
| Frequency | |
| Input | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output | |
| PLL | |
| Ratio | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |

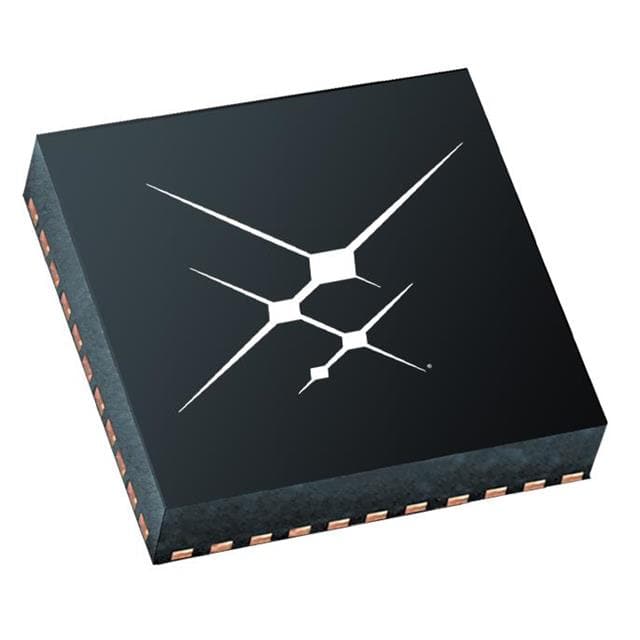

The Skyworks Solutions SI5392M-A-GMR is a high-performance jitter attenuator and clock multiplier designed for demanding applications. It integrates advanced DSPLL™ and MultiSynth™ technologies to achieve ultra-low phase jitter, as low as 69 fs RMS.
This device supports a wide input frequency range from 8 kHz to 750 MHz for differential signals and 8 kHz to 250 MHz for LVCMOS. The output frequency range extends up to 1028 MHz for differential and 250 MHz for LVCMOS. It features multiple output types including CML, HCSL, LVDS, LVPECL, and LVCMOS.
The SI5392M-A-GMR operates within a temperature range of -40°C to 85°C and is available in a 44-TFLGA exposed pad package, suitable for surface mounting. It is designed with an integrated PLL and offers a ratio of 4:2.
Key features include enhanced hitless switching, minimizing phase transients during input clock changes. The device is programmable via a serial interface with in-circuit programmable non-volatile memory (NVM), ensuring a known frequency configuration upon power-up. Programming is facilitated by Skyworks’ ClockBuilder™ Pro software.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.01 | $7.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ultra-low phase jitter for the SI5392M-A-GMR is 69 fs RMS for Grade P, 71 fs RMS for Grade E, 85 fs RMS in integer mode, and 100 fs RMS in fractional mode.
The input frequency range is 8 kHz to 750 MHz (Differential) and 8 kHz to 250 MHz (LVCMOS). The output frequency range is 100 Hz to 1028 MHz (Differential) and 100 Hz to 250 MHz (LVCMOS).
The operating voltage range is 1.71V to 1.89V and 3.14V to 3.47V.
The operating temperature range is -40°C to 85°C.
The SI5392M-A-GMR is available in a 44-TFLGA exposed pad package and a 44-LGA (7x7) package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
