The Skyworks Solutions SI5383A-D00100-GMR is a network synchronizer clock IC designed for applications requiring precise timing and low jitter. It integrates one to three independent DSPLLs, configurable for SyncE, IEEE 1588 DCO, or general-purpose clocking.
Key electrical specifications include an ultra-low jitter of less than 150 fs. The input frequency range spans from 8 kHz to 750 MHz for differential clocks and up to 250 MHz for LVCMOS clocks. Output frequencies can reach up to 718.5 MHz for differential outputs and 250 MHz for LVCMOS outputs.
This device is suitable for wireless backhaul, IP radio, small and macro cell wireless communications systems, and data center switches. It supports various synchronization standards including SyncE (ITU-T G.8262), IEEE 1588, and Stratum 3/3E compliance.

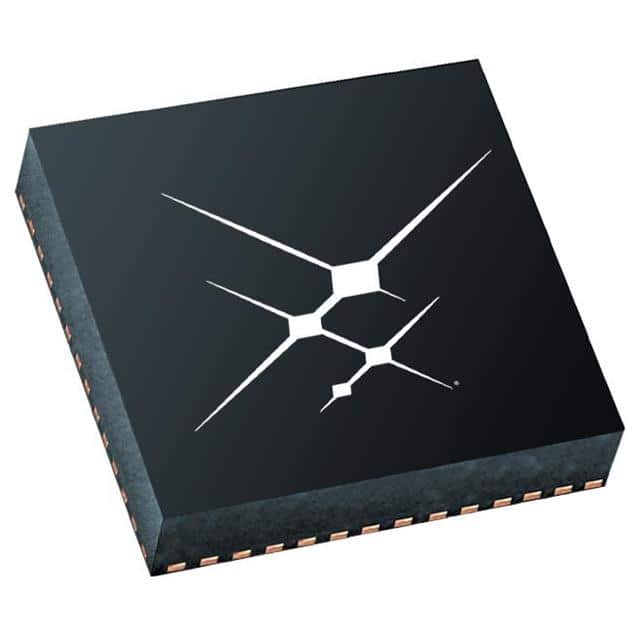

The SI5383A-D00100-GMR is housed in a 56-LGA (8x8) package and features a surface mount type. It is designed for flexible configuration via a serial interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.01 | $7.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input frequency range includes 25-54 MHz for external crystals, 5-250 MHz for REF clocks, 8 kHz - 750 MHz for differential clocks, and 8 kHz - 250 MHz for LVCMOS clocks.
The output frequency range is 100 Hz - 718.5 MHz for differential outputs and 100 Hz - 250 MHz for LVCMOS outputs.
The device offers ultra-low jitter of less than 150 fs.
The device integrates one or three independent DSPLLs.
The SI5383A-D00100-GMR is in a 56-VFLGA package, with a supplier package size of 56-LGA (8x8).
The mounting type is Surface Mount.
