| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Differential | |
| Divider | |
| Frequency | |
| Input | |
| Lead Spacing | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output | |
| PLL | |
| Ratio | |
| Supplier Device Package | |
| Type | |
| Voltage |

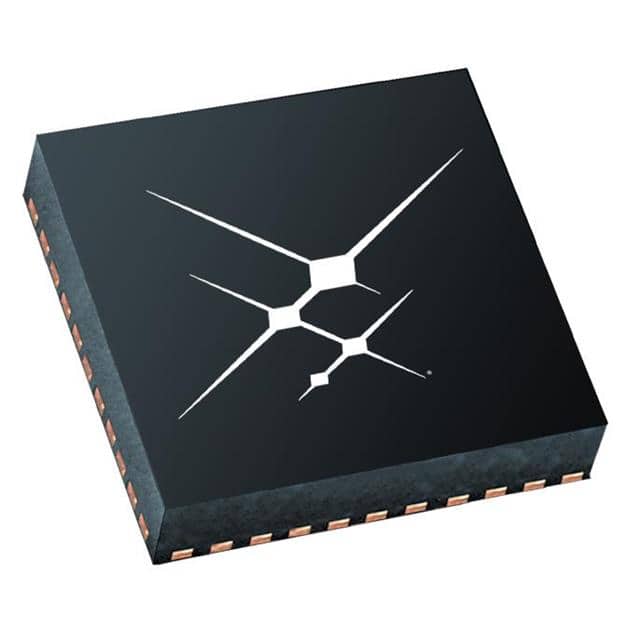

The Skyworks Solutions SI5344B-D14519-GM is a 10-channel, any-frequency, any-output jitter attenuator/clock multiplier. It utilizes fourth-generation DSPLL™ and MultiSynth™ technologies for high-performance clock generation and jitter attenuation.
Key electrical specifications include an input frequency range of 8 kHz to 750 MHz (Differential) and 8 kHz to 250 MHz (LVCMOS). The output frequency range is 100 Hz to 1028 MHz (Differential) and 100 Hz to 250 MHz (LVCMOS). It boasts ultra-low jitter of 90 fs rms and supports programmable jitter attenuation bandwidth from 0.1 Hz to 4 kHz. The device operates within a voltage range of 1.71V to 3.47V and has a nominal frequency of 350 MHz.
This device is designed for applications requiring high jitter performance, such as OTN muxponders, networking line cards, Synchronous Ethernet, carrier Ethernet switches, broadcast video, and test and measurement equipment. It meets G.8262 EEC Option 1, 2 (SyncE) standards.
The SI5344B-D14519-GM comes in a 44-QFN (7x7) package and is surface-mountable. It operates within an ambient temperature range of -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.01 | $7.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.71V to 3.47V.
The device is supplied in a 44-VFQFN Exposed Pad package.
The operating temperature range is -40°C to 85°C (TA).
The RoHS status is RoHS3 Compliant.
The device offers ultra-low jitter of 90 fs rms.
Input frequency range is 8 kHz to 750 MHz (Differential) and 8 kHz to 250 MHz (LVCMOS). Output frequency range is 100 Hz to 1028 MHz (Differential) and 100 Hz to 250 MHz (LVCMOS).
