SI5332FD14404-GM1

The Skyworks Solutions SI5332FD14404-GM1 is a programmable clock generator designed for flexible frequency synthesis. Based on Skyworks' proprietary MultiSynth™ technology, it can generate any combination of output frequencies with excellent jitter performance of 190 fs rms. This device supports up to 12 differential clock outputs with 0 ppm frequency synthesis error.

Key electrical specifications include an operating voltage range of 1.71V to 3.63V and an operating temperature range of -40°C to 85°C. The output frequency can reach up to 333.33 MHz for differential outputs and 170 MHz for LVCMOS outputs. Input frequency ranges vary depending on the source, from 16 MHz to 50 MHz for external crystals, 10 MHz to 250 MHz for differential clocks, and 10 MHz to 170 MHz for LVCMOS clocks.

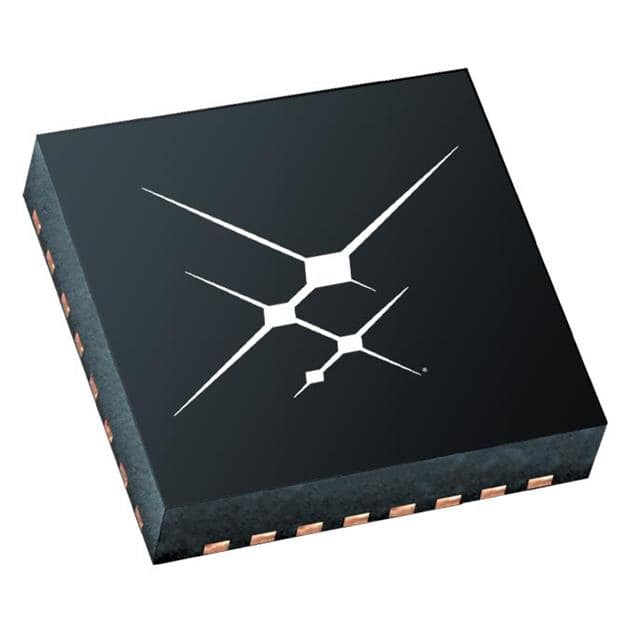

This clock generator supports multiple output formats including HCSL, LVCMOS, LVDS, and LVPECL. It is PCIe Gen 1/2/3/4/5/6 compliant and features down and center spread spectrum capabilities. The device is housed in a 32-QFN (5x5) package and is surface mountable.

Applications for the SI5332FD14404-GM1 include servers, storage, search acceleration, Ethernet switches and routers, small cells, mobile backhaul/fronthaul, print imaging, communications, broadcast video, test and measurement, and industrial embedded computing.
