Mfr Part #:

SI5332F-D-GM3

The Skyworks Solutions SI5332F-D-GM3 is a versatile clock generator IC featuring up to 12 outputs and a frequency of 200MHz. It operates within a temperature range of -40°C to 85°C.

✓ Total Stock: 500 pcs

$ Price Range: $7.01

SI5332F-D-GM3 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	500 pcs On Request	500 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SI5332F-D-GM3 Description

Short technical summary and product information.

The Skyworks Solutions SI5332F-D-GM3 is a highly flexible clock generator IC designed for various applications including servers, storage, Ethernet switches, and industrial computing. Based on Skyworks' proprietary MultiSynth™ technology, it can generate any combination of output frequencies with excellent jitter performance (190 fs rms) and 0 ppm frequency synthesis error.

This device supports up to 12 differential clock outputs and offers user-configurable signal formats including LVDS, LVPECL, HCSL, and LVCMOS. It operates with a voltage range of 1.71V to 3.63V and a temperature range of -40°C to 85°C. The SI5332F-D-GM3 is PCIe Gen 1/2/3/4/5/6 compliant.

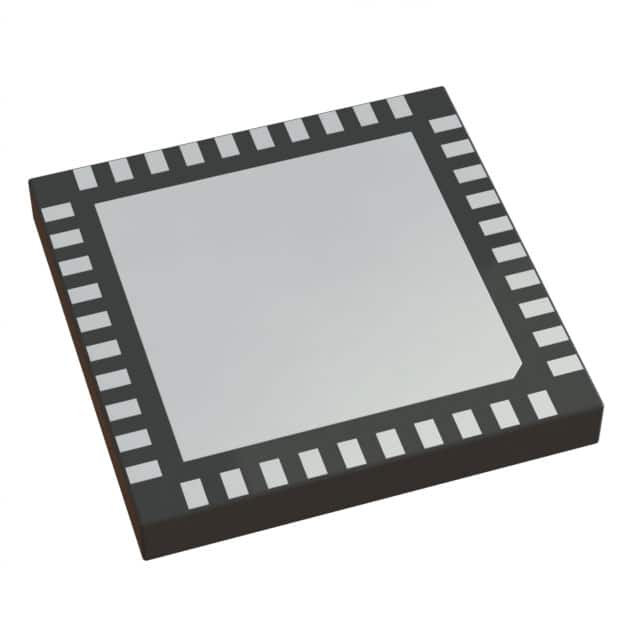

It is available in a 48-TFLGA Exposed Pad package, suitable for surface mounting. The device can be configured using Skyworks' ClockBuilder Pro™ software, allowing for custom part numbers tailored to specific application needs. Its flexible architecture makes it ideal for replacing multiple clock ICs and oscillators with a single device.

SI5332F-D-GM3 Quick Information

Product Type: Clock Generator

Canonical Name: Skyworks Solutions SI5332F-D-GM3 Clock Generator

Subcategory: Clock Generators, PLLs, Frequency Synthesizers

SI5332F-D-GM3 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SI5332F-D-GM3 Estimated Pricing

Qty	Low	High
1+	$7.01	$7.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

SI5332F-D-GM3 Features

Generates any frequency combination.
Supports up to 12 differential clock outputs.
Offers multiple output signal formats.
Operates from 1.71V to 3.63V.
Wide temperature range of -40°C to 85°C.

SI5332F-D-GM3 Applications

Ideal for server applications.
Suitable for Ethernet switches.
Used in small cell designs.
Applicable to broadcast video.
Designed for industrial computing.

SI5332F-D-GM3 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the operating voltage for the SI5332F-D-GM3?

The operating voltage is 1.71V to 3.63V.

What package type is the SI5332F-D-GM3 available in?

It is available in a 48-TFLGA Exposed Pad package.

What is the operating temperature range for this clock generator?

The operating temperature range is -40°C to 85°C.

What output formats does the SI5332F-D-GM3 support?

It supports HCSL, LVCMOS, LVDS, and LVPECL output formats.

What is the maximum frequency output for the SI5332F-D-GM3?

The datasheet specifies an output frequency range of 5 to 333.33 MHz.

Is the SI5332F-D-GM3 PCIe compliant?

Yes, it is compliant with PCIe Gen 1/2/3/4/5/6.

Category	Clock Generators, PLLs, Frequency Synthesizers
Manufacturer Name	Skyworks Solutions
Differential	Yes
Divider	Yes
Frequency	200 MHz
Input	LVCMOS, Crystal
Input Type	LVCMOS, Crystal
Mounting Type	Surface Mount
Number of Circuits	1
Number of Inputs	3
Number of Outputs	12
Operating Temperature	-40°C ~ 85°C
Output	HCSL, LVCMOS, LVDS, LVPECL
PLL	Yes
Ratio	3:12
Supplier Device Package	48-LGA (6x6)
Tape & Reel	No
Type	Clock Generator
Voltage	1.71V ~ 3.63V
