| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,020 pcs
|
7020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

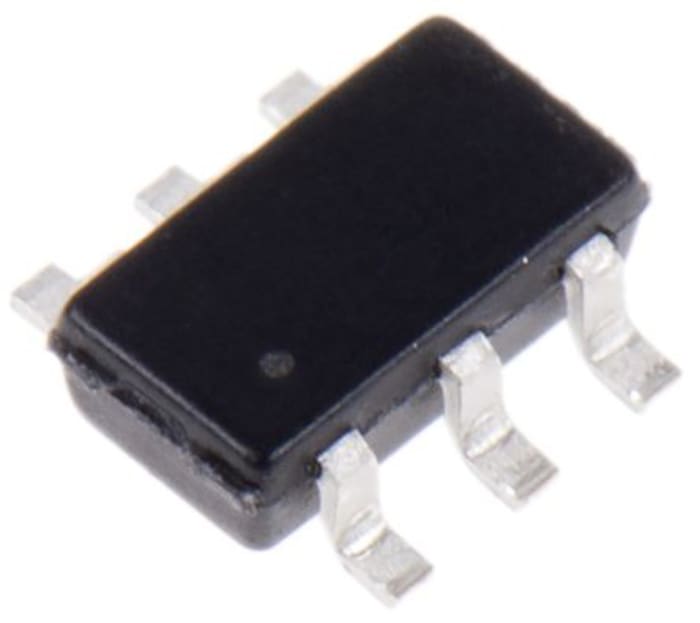

The Vishay SI3129DV-T1-GE3 is a P-Channel power MOSFET designed for power management applications. It offers a Drain-Source Voltage (Vds) of 80V and a maximum continuous drain current of 5.4A at 25°C case temperature.
Key electrical characteristics include a maximum Drain-Source On-Resistance (RDS(on)) of 82.7mΩ at a gate-source voltage (Vgs) of 10V, and 0.0827Ω at -10V Vgs. The typical gate charge (Qg) is 5.6nC. The device operates over a wide temperature range from -55°C to 150°C.
This MOSFET is housed in a compact TSOP-6 (SOT-23-6 Thin) surface-mount package, making it suitable for space-constrained designs. It is ideal for applications such as load switches and DC/DC converters in portable and consumer electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 80V.
The maximum continuous drain current is 5.4A at 25°C case temperature and 3.8A at 25°C ambient temperature.
The maximum RDS(on) is 82.7mΩ at 3.8A drain current and 10V gate-source voltage.
The operating junction and storage temperature range is -55°C to 150°C.
It is supplied in a 6-TSOP package, also referred to as SOT-23-6 Thin.
The RoHS status is listed as RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
