| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
645,714 pcs
|
645714 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,690 pcs
|
1690 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| ESD Protection | |
| Features | |
| Halogen Free | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| SVHC Present | |
| Supplier Device Package | |
| Switch Type | |
| Tape & Reel | |
| Voltage |

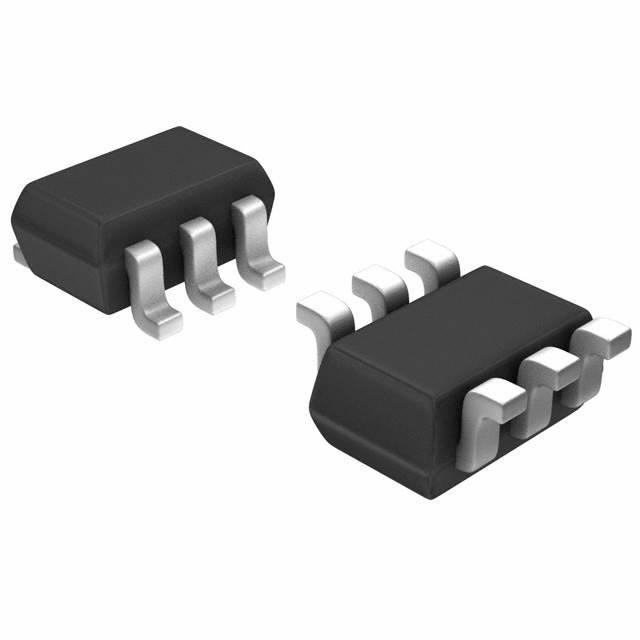

The Vishay Dale Si1865DL is a load switch IC featuring a P-channel MOSFET integrated into a compact SC70-6 package. This device is tailored for high-side load switching in portable applications. It operates on supply lines ranging from 1.8 V to 8 V and can drive loads up to 1.2 A.
The Si1865DL includes an n-channel MOSFET that, with an external resistor, can function as a level-shift to drive the P-channel load switch. The n-channel MOSFET offers internal ESD protection and can be controlled by logic signals as low as 1.5 V. The device supports adjustable slew-rate control, allowing rise-times to be tailored to different load types.
Key electrical characteristics include a low on-resistance of 215 mΩ typical at VIN = 4.5 V. The device is available in a low-profile, small footprint SC70-6 package, making it suitable for space-constrained designs. It also features 2000 V ESD protection on the input switch.
This load switch is compliant with RoHS Directive 2002/95/EC and is halogen-free according to IEC 61249-2-21 definition. It is mounted using surface mount technology.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 1.8V to 8V.
The maximum continuous load current is 1.2A.
It is available in a surface-mount SC-70-6 package (also 6-TSSOP, SC-88, SOT-363).
The operating junction temperature range is -55°C to 150°C.
The typical on-resistance is 215 mΩ at 4.5V input.
Yes, ESD protection on the input switch and VON/OFF pins is rated at 2000V.
Yes, the device is halogen-free per the datasheet.
