| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
723,200 pcs
|
723200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

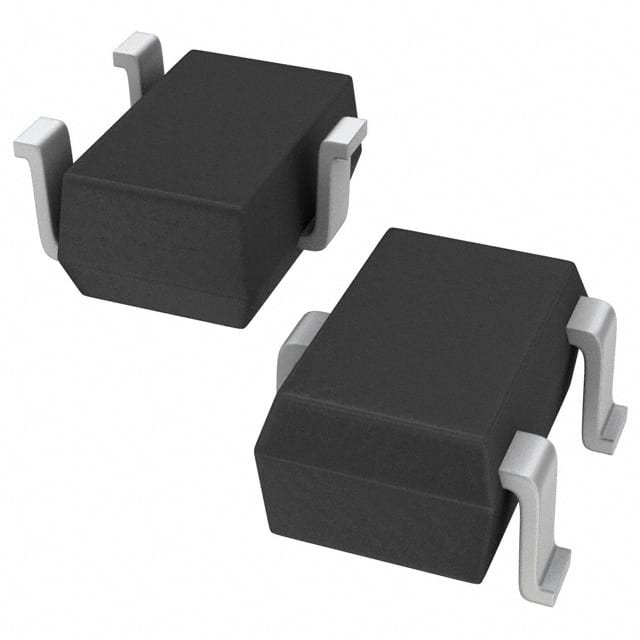

The Vishay Dale SI1305EDL-T1-E3 is a P-Channel MOSFET designed for various electronic applications. It features a drain-to-source voltage (Vdss) of 8V and can handle a continuous drain current of 860mA at 25°C.
The MOSFET has a low on-resistance (Rds On) of 280mOhm at 1A and 4.5V, with a gate charge of 4nC at 4.5V. The threshold voltage (Vgs(th)) is a maximum of 450mV at 250µA. It operates within a temperature range of -55°C to 150°C (TJ).
This device is packaged in an SC-70-3 surface-mount package, making it suitable for compact designs. The power dissipation is rated at 290mW (Ta). It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
Key electrical characteristics include a maximum gate-source voltage of ±8V and drive voltages ranging from 1.8V to 4.5V. The technology used is MOSFET (Metal Oxide).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8V.
Surface-mount SC-70-3 package (also known as SOT-323).
-55°C to 150°C (junction).
450mV at 250µA drain current.
4 nC at Vgs = 4.5V.
280mOhm at Id = 1A and Vgs = 4.5V.
1.8V and 4.5V.
