| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22,050 pcs
|
22050 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Frequency | |
| GPIO | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Output Power | |
| SVHC Present | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Type |

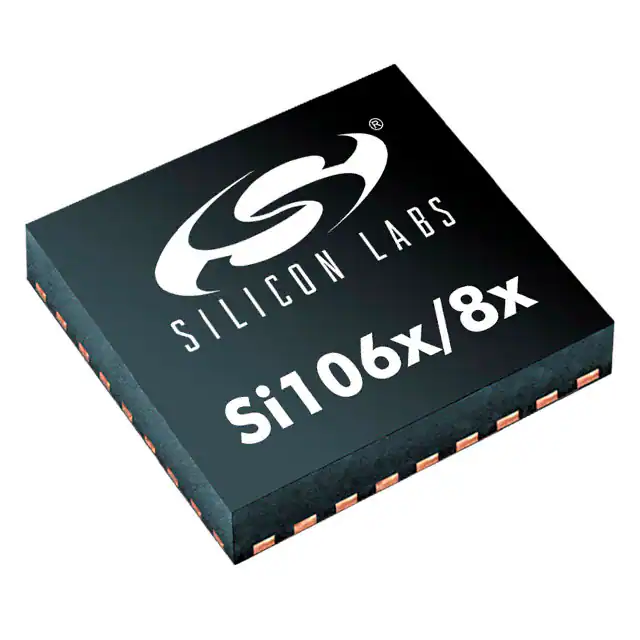

The Silicon Labs SI1063-A-GM is a versatile RF Transceiver IC featuring an integrated microcontroller. It is designed for applications operating in the General ISM < 1GHz frequency band, covering a range from 142MHz to 1.05GHz. This device offers a maximum output power of 13dBm and a sensitivity of -126dBm, enabling robust wireless communication.
With a maximum data rate of 1Mbps, the SI1063-A-GM supports various modulation schemes including 4FSK, 4GFSK, FSK, GFSK, and OOK. It includes 32kB of Flash memory and 4kB of RAM, along with serial interfaces like I2C, SPI, and UART for flexible integration. The operating voltage range is 1.8V to 3.6V, with receiving current consumption between 10.7mA and 13.7mA, and transmitting current between 18mA and 29mA.
This component is available in a 36-WFQFN Exposed Pad package and is designed for surface mounting. It operates within an ambient temperature range of -40°C to 85°C. The SI1063-A-GM is suitable for a wide array of wireless applications requiring reliable and efficient RF communication.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.40 | $2.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SI1063-A-GM operates from 1.8V to 3.6V.
The SI1063-A-GM operates from -40°C to +85°C.
The SI1063-A-GM is available in a 36-WFQFN Exposed Pad package (36-QFN, 5x6mm).
The maximum data rate is 1Mbps.
It supports 4FSK, 4GFSK, FSK, GFSK, and OOK modulation.
The maximum output power is 13dBm.
The minimum receiver sensitivity is -126dBm.
