| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
602,667 pcs
|
602667 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| FET Feature | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Vgs(th) (Max) @ Id |

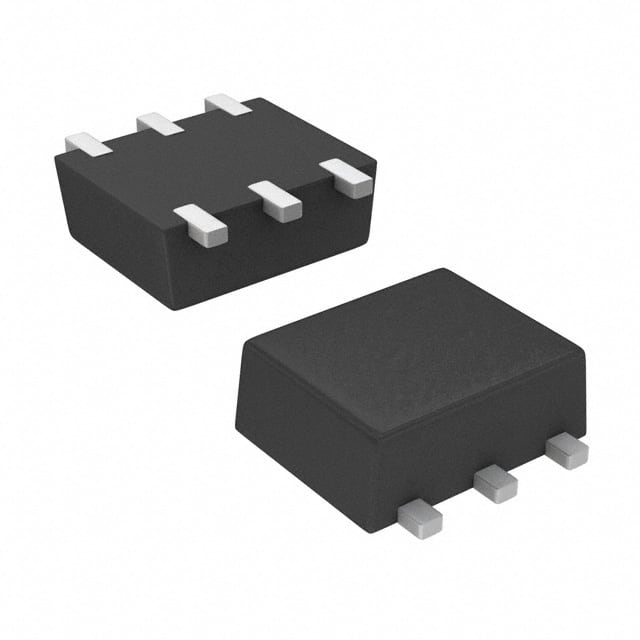

The Vishay Dale SI1016X-T1-E3 is a versatile MOSFET array designed for low-voltage applications. It integrates both N-Channel and P-Channel MOSFETs within a compact SC-89 (SOT-563F) package, making it suitable for space-constrained designs.
This device offers a 20V Drain-Source Voltage and supports N-Channel operation with up to 485mA continuous drain current at 25°C, and P-Channel operation with up to 370mA. Key electrical characteristics include a low threshold voltage and low on-resistance, facilitating efficient switching and low-voltage operation.
The MOSFET array is designed for high-side switching and can replace digital transistors or serve as a level-shifter. Its fast switching speed and low on-resistance make it suitable for battery-operated systems and power supply converter circuits. The operating temperature range is from -55°C to 150°C.
Mounting is achieved via surface mount technology. The component is RoHS 3 compliant and Halogen-Free, aligning with environmental regulations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Drain-Source Voltage (Vds) for the SI1016X-T1-E3 is 20V.
The maximum continuous drain current (Id) for the SI1016X-T1-E3 is 485mA at TA = 25°C.
The on-resistance (Rds On) for the SI1016X-T1-E3 is 0.7Ω at 600mA, 4.5V for N-Channel and 1.2Ω at -400mA, -4.5V for P-Channel.
The operating temperature range for the SI1016X-T1-E3 is -55°C to 150°C (TJ).
The SI1016X-T1-E3 is available in the SC-89 (SOT-563F) package.
Yes, the SI1016X-T1-E3 is RoHS 3 Compliant.
Yes, the SI1016X-T1-E3 is Halogen-Free.
