| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
516,571 pcs
|
516571 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| ESD Protection | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The SI1013R-T1-E3 from Vishay Dale is a P-Channel MOSFET designed for various electronic applications. It features a drain-to-source voltage (Vdss) of 20V and a continuous drain current (Id) of 350mA at an ambient temperature (Ta).
Key electrical characteristics include a maximum on-resistance (Rds On) of 1.2 Ohm at 350mA and 4.5V Vgs, and a gate threshold voltage (Vgs(th)) of 450mV minimum at 250µA. The device operates within a temperature range of -55°C to 150°C (TJ).

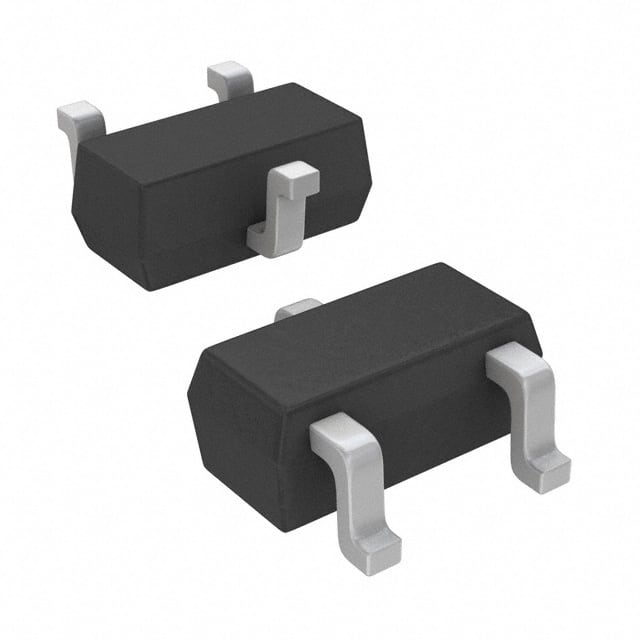

This MOSFET is packaged in an SC-75A (SOT-416) surface mount case, making it suitable for compact designs. It also offers features such as low input capacitance and fast switching speeds, as indicated by fetched manufacturer data.
Applications for this component include direct logic-level interfaces for TTL/CMOS, drivers for relays, solenoids, lamps, and other devices, as well as battery-operated systems and solid-state relays.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage rating is 20V.
The package is SC-75A, also known as SC-75 or SOT-416.
The operating temperature range is -55°C to 150°C.
The continuous drain current is 350mA at ambient temperature.
The maximum on-resistance is 1.2 Ohms at 350mA and 4.5V gate drive.
The minimum gate threshold voltage is 450mV at 250µA drain current.
The maximum gate charge is 1.5 nC at 4.5V gate-source voltage.
