| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,030 pcs
|
4030 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Function | |
| Interface | |
| Motor Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| Package / Case | |
| Package Quantity | |
| Step Resolution | |
| Supplier Device Package | |
| Technology | |
| Voltage | |
| Voltage Supply |
The Sanken SI-7510 is a multiphase motor driver IC designed for general-purpose applications. It integrates both control and power stage functionalities, utilizing Power MOSFET technology.
Key electrical specifications include an output current capability of 6A, a load voltage range from 10V to 42V, and a supply voltage range of 3V to 5.5V. The device supports step resolutions of 1 and 1/2, with an output configuration of Half Bridge (5).

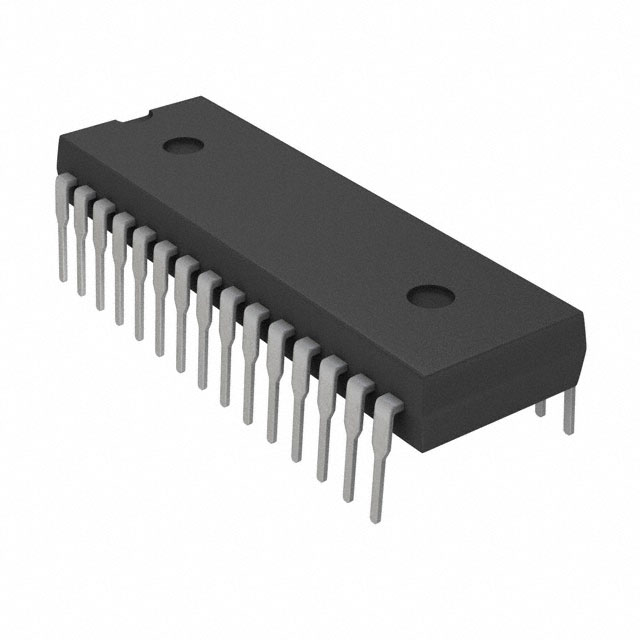

This component is housed in a 30-DIP package and is designed for through-hole mounting. The operating temperature range is specified from -10°C to 150°C (TJ). The interface is parallel, and it is classified as a PMIC - Motor Drivers, Controllers.
Compliance information indicates RoHS3 compliance and a Moisture Sensitivity Level (MSL) of 1 (Unlimited). REACH status is noted as unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output current is 6A.
The load voltage range is 10V to 42V, and the supply voltage range is 3V to 5.5V.
The operating temperature range is -10°C to 150°C (TJ).
The SI-7510 is available in a 30-DIP package.
The SI-7510 is designed for through-hole mounting.
The step resolution is 1 and 1/2.
The MSL is 1 Unlimited.
