SI-7321M The Sanken SI-7321M is a fully integrated motor driver controller designed for unipolar stepper motors. It offers a 1.5A output current and operates from a 3V to 5.5V supply voltage.
Mfr Part #:

SI-7321M

Available from 1 distributors
Mfr Name: Sanken
Sanken
The Sanken SI-7321M is a fully integrated motor driver controller designed for unipolar stepper motors. It offers a 1.5A output current and operates from a 3V to 5.5V supply voltage.
✓ Total Stock: 1,600 pcs
$ Price Range: $2.25

SI-7321M Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,600 pcs
On Request
1600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SI-7321M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Function
Interface
Motor Type
Mounting Type
Operating Temperature
Output Configuration
Step Resolution
Supplier Device Package
Technology
Voltage
Voltage Supply
View Similar Products (0)

SI-7321M Description

Short technical summary and product information.

The Sanken SI-7321M is a highly integrated motor driver controller suitable for general-purpose applications. This device integrates both control and power stages, simplifying system design. It is designed to drive unipolar stepper motors with step resolutions of 1, 1/2, 1/4, 1/8, and 1/16.



Key electrical specifications include a supply voltage range of 3V to 5.5V and a load voltage range of 10V to 44V, with a maximum output current of 1.5A. The controller utilizes Power MOSFET technology and features a parallel interface for control. The output configuration is low side with 4 outputs.

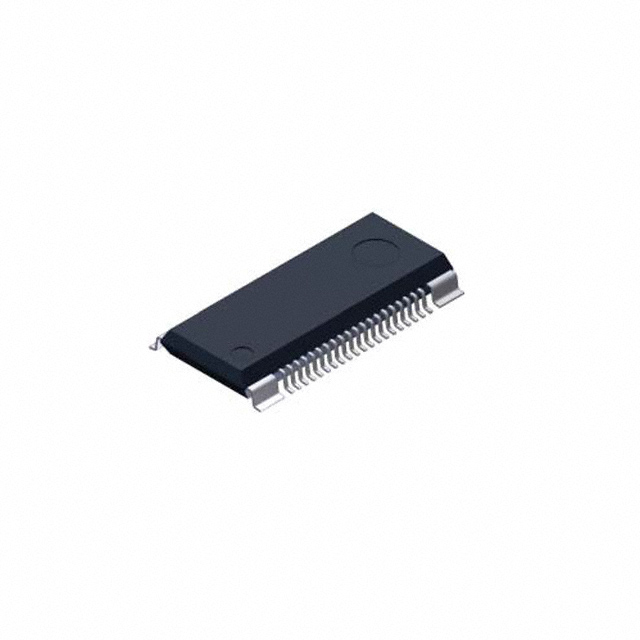

This component is housed in a 44-SSOP package with heat tabs, designed for surface mounting. The operating temperature range is from -20°C to 150°C (TJ). The SI-7321M is suitable for general-purpose applications requiring precise motor control.

SI-7321M Quick Information

Product Type: Motor Driver Controller
Canonical Name: SI-7321M Motor Driver Controller
Subcategory: Motor Driver

SI-7321M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SI-7321M Estimated Pricing

Qty Low High
1+ $2.25 $2.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

SI-7321M Features

  • Fully integrated control and power stage.
  • Supports unipolar stepper motor control.
  • 1.5A maximum output current.
  • Wide supply voltage range.
  • Surface mount 44-SSOP package.

SI-7321M Applications

  • Suitable for general purpose applications.
  • Ideal for stepper motor control.
  • Used in various automation systems.
  • Enables precise motor positioning.

SI-7321M FAQs

5 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the SI-7321M?

The supply voltage range for the SI-7321M is 3V to 5.5V.

What is the operating temperature range of the SI-7321M?

The SI-7321M operates within a temperature range of -20°C to 150°C (TJ).

What type of motor does the SI-7321M drive?

The SI-7321M is designed to drive unipolar stepper motors.

What is the maximum output current of the SI-7321M?

The maximum output current for the SI-7321M is 1.5A.

What package type does the SI-7321M come in?

The SI-7321M is available in a 44-SSOP (0.295", 7.50mm Width) package with 4 Heat Tabs.
