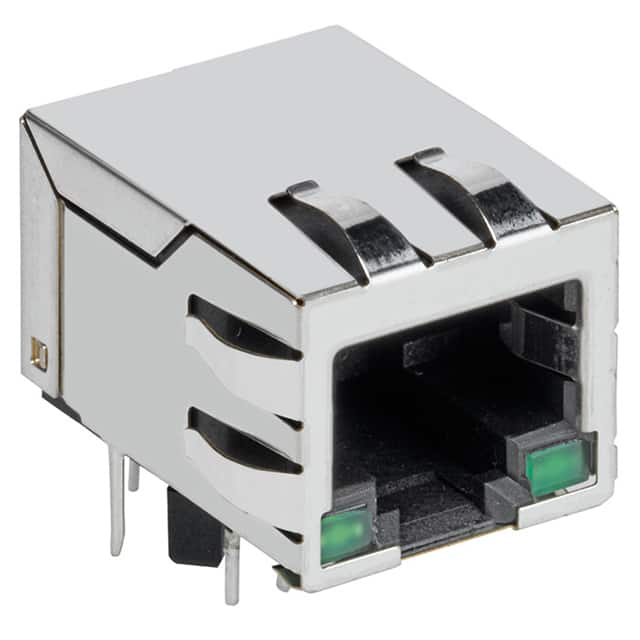

The Stewart Connector SI-60163-F is a single-port RJ45 modular jack with integrated magnetics, designed for 10 Base-T Ethernet applications. This connector features a shielded construction to reduce electromagnetic interference and includes a board lock for secure attachment to the PCB.
It is configured with a 90° right-angle orientation and a downward tab direction, making it suitable for edge-mounted or low-profile designs. The through-hole mounting and solder termination provide a reliable mechanical and electrical connection. The contact material is copper alloy with a gold finish, ensuring good conductivity and corrosion resistance.
This component is designed for use in networking equipment, industrial controls, and other applications requiring a compact, shielded Ethernet interface. The integrated magnetics help simplify PCB layout by combining the connector and isolation transformer in a single package.
It is an RJ45 modular connector jack with integrated magnetics.
It has 1 port.
It is a through-hole mount connector.
Yes, it is shielded.
It supports 10 Base-T.
Yes, it features a board lock.
It has a 90° angle (right) orientation with a downward tab direction.
