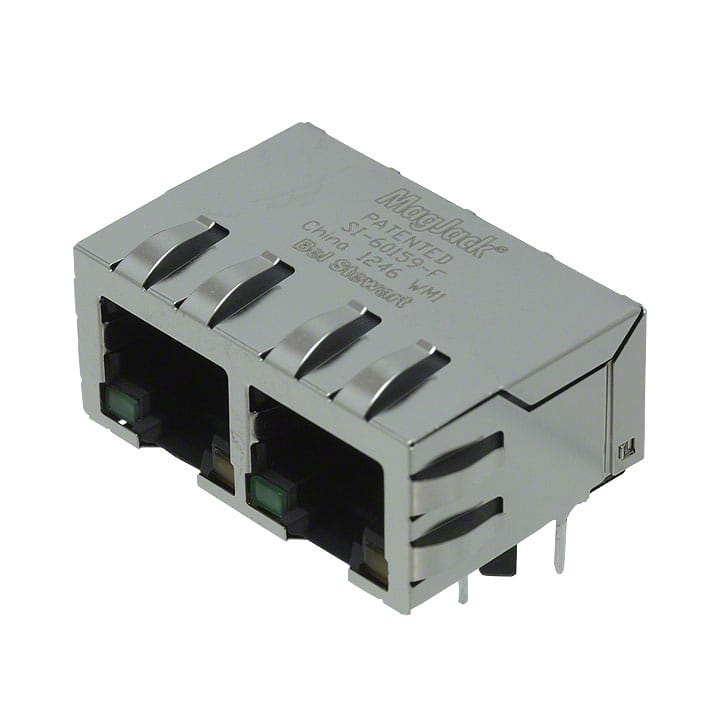

SI-60159-F The SI-60159-F from Bel Fuse is a 2-port RJ45 modular jack with integrated magnetics for 10/100 Base-T Ethernet applications. It features a through-hole, right-angle mounting with shielded EMI finger and dual LED indicators (Green/Yellow).
Mfr Part #:

SI-60159-F

Available from 1 distributors
Mfr Name: Bel Fuse
Bel Fuse
The SI-60159-F from Bel Fuse is a 2-port RJ45 modular jack with integrated magnetics for 10/100 Base-T Ethernet applications. It features a through-hole, right-angle mounting with shielded EMI finger and dual LED indicators (Green/Yellow).
✓ Total Stock: 180 pcs
$ Price Range: $5.60 - $9.15

SI-60159-F Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
180 pcs
On Request
180 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SI-60159-F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Connector Type
Contact Finish
Contact Material
Features
Height Above Board
LED Color
Mounting Type
Number of Cores per Jack
Number of Ports
Number of Rows
Operating Temperature
Orientation
Shielding
Tab Direction
Tape & Reel
Termination
Termination Style
View Similar Products (0)

SI-60159-F Description

Short technical summary and product information.

The SI-60159-F is a 2-port RJ45 modular connector jack with integrated magnetics manufactured by Bel Fuse. Designed for 10/100 Base-T Ethernet with AutoMDIX support, this connector provides a complete physical layer interface for network applications. Each port includes four cores for signal isolation and transformation. The connector is shielded with an EMI finger to reduce electromagnetic interference. It features a right-angle orientation (90°) with a down-facing tab, making it suitable for side-entry PCB applications. The mounting type is through-hole with solder termination, ensuring robust mechanical attachment. The contact material is copper alloy with gold finish for reliable connectivity. The operating temperature range is 0°C to 70°C. The height above board is 0.545 inches (13.84 mm). The package includes a board guide feature for alignment during assembly. LED indicators (green and yellow) provide link/activity status.

SI-60159-F Quick Information

Product Type: Modular Connector Jack with Magnetics
Canonical Name: Modular Jack, RJ45, 2 Port, 10/100 Base-T with Magnetics, Through Hole, Right Angle
Subcategory: With Magnetics

SI-60159-F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SI-60159-F Estimated Pricing

Qty Low High
1+ $9.15 $9.15
10+ $7.78 $7.78
30+ $7.19 $7.19
60+ $6.84 $6.84
120+ $6.52 $6.52
270+ $6.15 $6.15
510+ $5.88 $5.88
1,020+ $5.60 $5.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

SI-60159-F Features

  • 2-port RJ45 with integrated magnetics.
  • Supports 10/100 Base-T Ethernet.
  • Through-hole, right-angle mounting.
  • Shielded with EMI finger.
  • Green and yellow LED indicators.

SI-60159-F Applications

  • Used in Ethernet network interface cards.
  • Ideal for routers and switches.
  • Suitable for industrial automation equipment.
  • Perfect for embedded systems requiring 10/100 Base-T.

SI-60159-F FAQs

7 frequently asked questions generated from this part’s specifications.
What is the mounting type for this connector?

Through Hole

How many ports does the SI-60159-F have?

2 ports

What is the orientation of the connector?

90° Angle (Right)

Is this connector shielded?

Yes, shielded with EMI finger.

What LED colors are available?

Green and Yellow.

What Ethernet standards does this jack support?

10/100 Base-T and AutoMDIX.

What is the operating temperature range?

0°C to 70°C.
