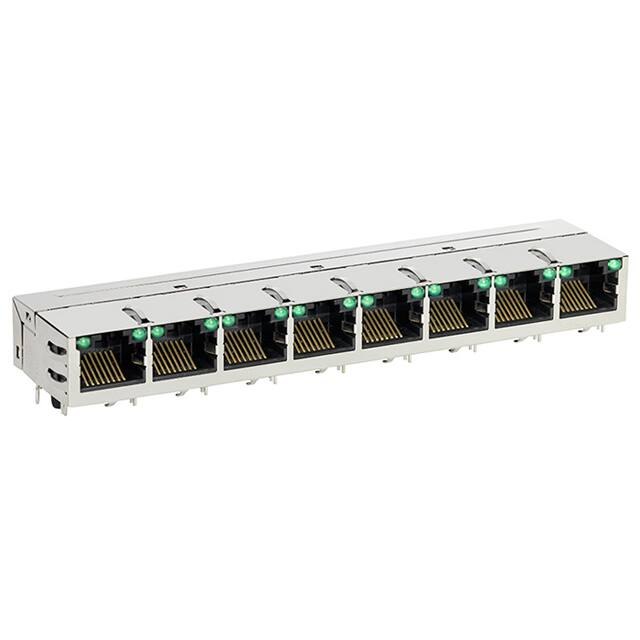

SI-60115-F 8-port RJ45 modular jack with magnetics, shielded with EMI finger, through hole solder termination, 90° right angle orientation, tab down.
Mfr Part #:

SI-60115-F

Available from 1 distributors
Mfr Name: Bel Fuse
Bel Fuse
8-port RJ45 modular jack with magnetics, shielded with EMI finger, through hole solder termination, 90° right angle orientation, tab down.
✓ Total Stock: 150 pcs
$ Price Range: $29.94 - $30.84

SI-60115-F Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
150 pcs
On Request
150 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SI-60115-F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Connector Type
Contact Finish
Contact Material
Features
Height Above Board
LED Color
Mounting Type
Number of Cores per Jack
Number of Ports
Number of Rows
Orientation
Shielding
Tab Direction
Tape & Reel
Termination
Termination Style
View Similar Products (0)

SI-60115-F Description

Short technical summary and product information.

The SI-60115-F from Bel Fuse is an 8-port RJ45 modular connector jack with integrated magnetics, designed for 10/100 Base-T Ethernet applications with AutoMDIX support. It features a through hole mounting style with solder termination, making it suitable for PCB assembly. The connector is shielded with an EMI finger to reduce electromagnetic interference. It has a 90° right angle orientation with tab down, and includes a board guide feature for alignment. Contact material is copper alloy with gold finish, ensuring reliable signal integrity. The height above board is 0.589 inches (14.97mm). This component does not contain LEDs.

SI-60115-F Quick Information

Product Type: Modular Connector Jack With Magnetics
Canonical Name: RJ45 Connector, 8 Port, 1 Row, 4 Cores per Jack, Through Hole, Shielded, 90° Right Angle, Tab Down
Subcategory: With Magnetics

SI-60115-F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SI-60115-F Estimated Pricing

Qty Low High
176+ $30.84 $30.84
352+ $29.94 $29.94

Estimated market price range - modelled values for guidance only, not live distributor offers.

SI-60115-F Features

  • 8-port RJ45 jack with integrated magnetics.
  • Shielded with EMI finger for noise reduction.
  • Through hole solder termination for secure mounting.
  • 90° right angle orientation with tab down.
  • Board guide feature aids alignment.

SI-60115-F Applications

  • Used in 10/100 Base-T Ethernet networks.
  • Supports AutoMDIX for automatic crossover detection.
  • Ideal for network switches and routers.
  • Suitable for industrial Ethernet applications.

SI-60115-F FAQs

7 frequently asked questions generated from this part’s specifications.
How many ports does this connector have?

8 ports.

What is the mounting type?

Through hole.

What is the connector orientation?

90° angle (right) with tab down.

Does this connector have shielding?

Yes, it is shielded with an EMI finger.

What is the contact finish?

Gold.

What applications is this connector suitable for?

10/100 Base-T with AutoMDIX.

Does this connector have LEDs?

No, it does not contain LED.
