| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21,150 pcs
|
21150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination |

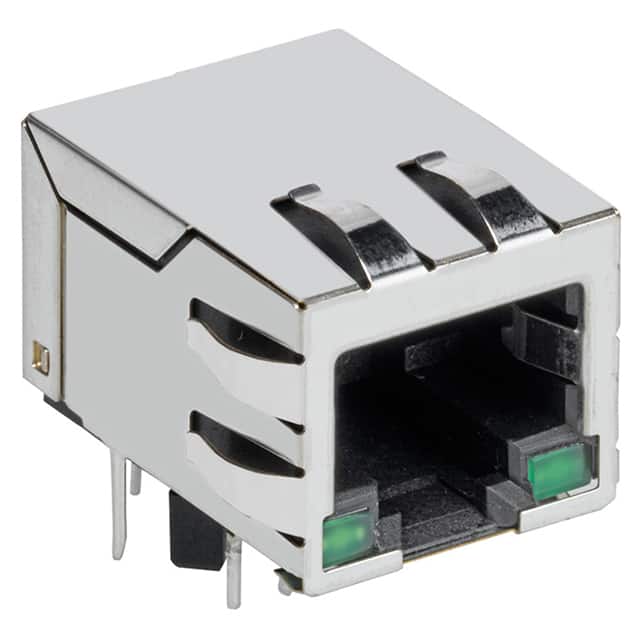

The Bel Fuse SI-60062-F is a single-port RJ45 modular connector jack with integrated magnetics, designed for 10/100 Base-T Ethernet applications. It features a shielded design with an EMI finger to reduce electromagnetic interference.
This connector has a 90° right-angle orientation with a downward tab direction, making it suitable for PCB edge mounting. It is through-hole mounted with solder termination. The contacts are made of copper alloy with gold finish for reliable connectivity.
The jack includes a board guide for easy alignment during assembly. It supports AutoMDIX for automatic crossover detection. The height above board is 13.84 mm. LED indicators are provided with yellow-green color.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.65 | $5.65 |
| 10+ | $4.80 | $4.80 |
| 25+ | $4.50 | $4.50 |
| 50+ | $4.28 | $4.28 |
| 100+ | $4.07 | $4.07 |
| 250+ | $3.82 | $3.82 |
| 500+ | $3.63 | $3.63 |
| 1,000+ | $3.60 | $3.60 |
| 2,500+ | $3.56 | $3.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
RJ45.
1 port.
Through hole.
Yes, shielded with EMI finger.
90° angle (right) with tab down.
10/100 Base-T and AutoMDIX.
13.84 mm.
