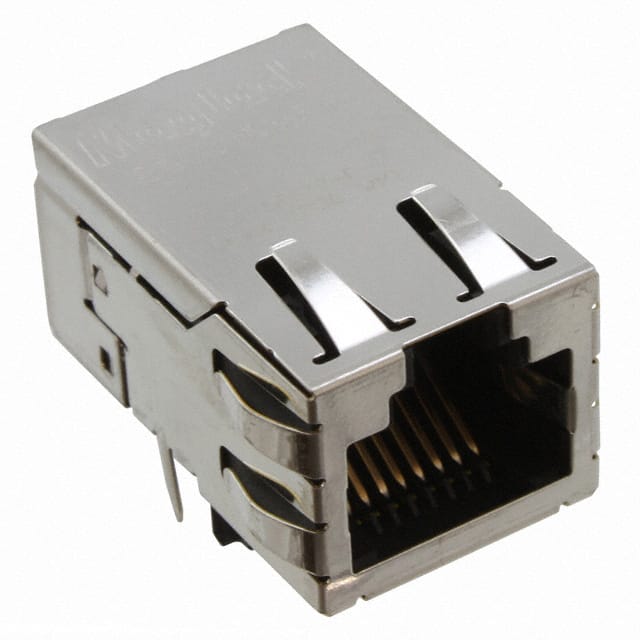

SI-50177-F Bel Fuse SI-50177-F is a single port RJ45 modular jack with integrated magnetics, through hole mounting, right angle orientation, and EMI shielding.
Mfr Part #:

SI-50177-F

Available from 1 distributors
Mfr Name: Bel Fuse
Bel Fuse
Bel Fuse SI-50177-F is a single port RJ45 modular jack with integrated magnetics, through hole mounting, right angle orientation, and EMI shielding.
✓ Total Stock: 400 pcs
$ Price Range: $2.76 - $4.81

SI-50177-F Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
400 pcs
On Request
400 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SI-50177-F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Connector Type
Contact Finish
Contact Material
Features
Height Above Board
LED Color
Mounting Type
Number of Cores per Jack
Number of Ports
Number of Rows
Orientation
SVHC Present
Shielding
Tab Direction
Tape & Reel
Termination
Termination Style
View Similar Products (0)

SI-50177-F Description

Short technical summary and product information.

The Bel Fuse SI-50177-F is a single port RJ45 modular jack with integrated magnetics, designed for 10/100 Base-T Ethernet applications with AutoMDIX support. This connector features a through hole mounting style with solder termination and a 90° right angle orientation with the tab facing up. It includes a shielded design with an EMI finger for enhanced electromagnetic interference protection, and a board guide for reliable alignment during assembly. The contacts are made of copper alloy with a gold finish, ensuring reliable electrical performance over repeated mating cycles. The height above board is 0.550 inches (13.97 mm). This component does not include an LED indicator.

SI-50177-F Quick Information

Product Type: Modular Connector Jack with Magnetics
Canonical Name: Bel Fuse SI-50177-F 1 Port RJ45 Modular Jack with Magnetics
Subcategory: Modular Connector Jacks With Magnetics

SI-50177-F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SI-50177-F Estimated Pricing

Qty Low High
1+ $4.81 $4.81
10+ $4.09 $4.09
25+ $3.84 $3.84
50+ $3.64 $3.64
100+ $3.47 $3.47
250+ $3.25 $3.25
500+ $3.10 $3.10
1,000+ $2.95 $2.95
2,500+ $2.76 $2.76

Estimated market price range - modelled values for guidance only, not live distributor offers.

SI-50177-F Features

  • Single port RJ45 jack with magnetics.
  • Supports 10/100 Base-T and AutoMDIX.
  • Through hole, right angle, tab up orientation.
  • Shielded with EMI finger for noise protection.
  • Gold plated copper alloy contacts.

SI-50177-F Applications

  • Used in 10/100 Base-T Ethernet ports.
  • Suitable for AutoMDIX capable devices.
  • Ideal for industrial networking equipment.
  • Common in embedded system LAN interfaces.

SI-50177-F FAQs

6 frequently asked questions generated from this part’s specifications.
What is the connector type and number of ports?

This is a single port RJ45 connector.

What is the mounting and termination style?

Through hole mounting with solder termination.

What Ethernet standards does this jack support?

It supports 10/100 Base-T and AutoMDIX.

Is this connector shielded?

Yes, it is shielded and includes an EMI finger.

What is the orientation of the connector?

Right angle (90°) with the tab facing up.

What is the contact finish and material?

Gold finish over copper alloy contacts.
