| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,400 pcs
|
1400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Data Rate | |
| Features | |
| Height Above Board | |
| LED Color | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination |

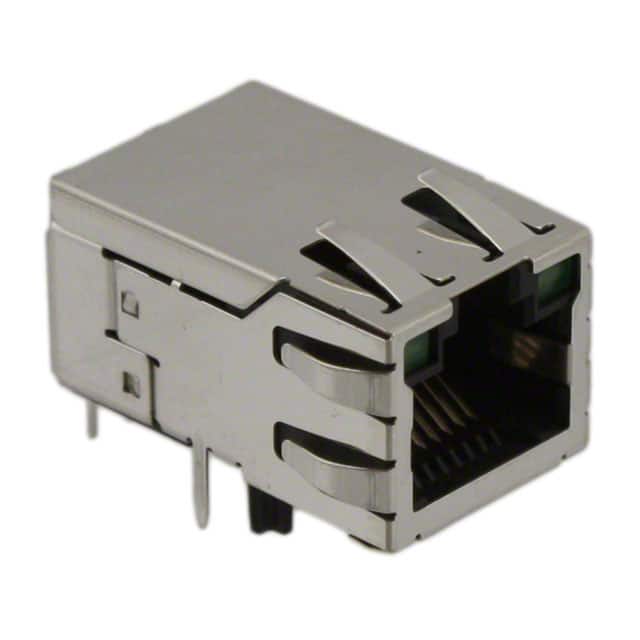

The Bel Fuse SI-50170-F is a single-port RJ45 modular connector jack with integrated magnetics, designed for 10/100 Base-T Ethernet applications. It features a through hole mounting type with a right angle (90°) orientation and an upward tab direction, making it suitable for PCB edge or panel placement where space is constrained.
This connector includes a shielded construction with an EMI finger for enhanced electromagnetic interference protection, ensuring reliable signal integrity in noise-sensitive environments. The contact material is copper alloy with a gold finish, providing durable and corrosion-resistant connections. The jack has 4 cores per port and a height above board of 13.97 mm.
Additional features include a board guide for accurate alignment during assembly, and dual green LED indicators for link/activity status. The connector supports 10/100 Mbps data rates and is compatible with AutoMDIX for automatic crossover detection. It is terminated via solder contacts.
Packaging is not specified, but the unit is intended for through hole soldering. Compliance with RoHS3 and REACH is claimed but unverified in this data set.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.05 | $6.05 |
| 10+ | $5.51 | $5.51 |
| 25+ | $5.22 | $5.22 |
| 50+ | $5.10 | $5.10 |
| 100+ | $4.85 | $4.85 |
| 250+ | $4.25 | $4.25 |
| 500+ | $3.78 | $3.78 |
| 1,000+ | $3.52 | $3.52 |
| 2,500+ | $3.28 | $3.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
RJ45.
1 port.
Through hole.
90° angle (right).
Yes, shielded with an EMI finger.
Green - Green.
10/100 Mbps.
