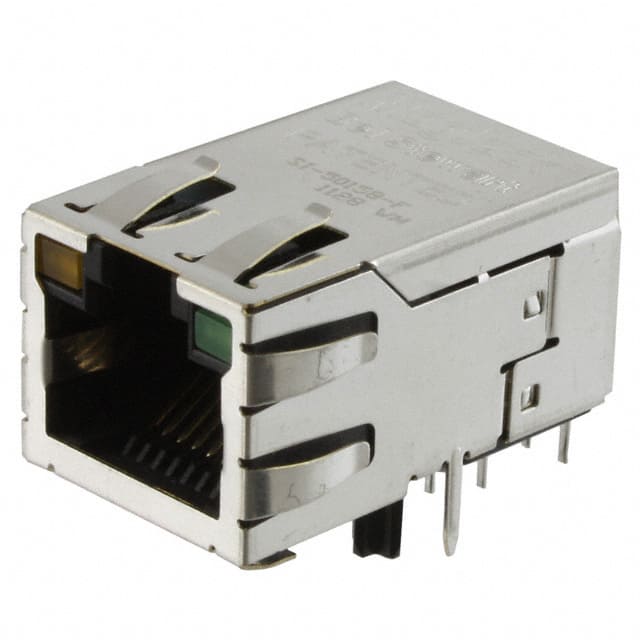

SI-50158-F Bel Fuse SI-50158-F is a 1-port RJ45 jack with integrated magnetics, through hole mounting, 90° right angle orientation, shielded with EMI finger, and yellow-green LED.
Mfr Part #:

SI-50158-F

Available from 2 distributors
Mfr Name: Bel Fuse
Bel Fuse
Bel Fuse SI-50158-F is a 1-port RJ45 jack with integrated magnetics, through hole mounting, 90° right angle orientation, shielded with EMI finger, and yellow-green LED.
✓ Total Stock: 794 pcs
$ Price Range: $4.90 - $7.98

SI-50158-F Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
644 pcs
On Request
644 pcs On Request 1 On Request On Request On Request On Request On Request
AA2DE ✓
Non-Authorised Inventory information
150 pcs
On Request
150 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SI-50158-F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Connector Type
Contact Finish
Contact Material
Features
Height Above Board
LED Color
Mounting Type
Number of Cores per Jack
Number of Ports
Number of Rows
Orientation
Shielding
Tab Direction
Tape & Reel
Termination
View Similar Products (0)

SI-50158-F Description

Short technical summary and product information.

The Bel Fuse SI-50158-F is a single-port RJ45 modular connector jack with integrated magnetics, designed for 10/100 Base-T Ethernet applications with AutoMDIX support. It features a through hole mounting style with solder termination and a 90° right angle orientation for space-constrained PCB layouts.



The connector is shielded with an EMI finger for enhanced electromagnetic interference protection. It includes a yellow-green LED for link/activity status indication and a board guide for reliable alignment during assembly. The contact material is copper alloy with gold finish, ensuring reliable electrical connections over repeated mating cycles.



This jack is suitable for networking equipment such as switches, routers, and industrial Ethernet interfaces where integrated magnetics simplify design and reduce component count. The 1x1 port configuration with 4 cores per jack supports standard Ethernet signaling.

SI-50158-F Quick Information

Product Type: Modular Connector Jack with Magnetics
Canonical Name: Bel Fuse SI-50158-F 1-Port RJ45 Jack with Magnetics
Subcategory: Modular Connector Jacks With Magnetics

SI-50158-F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SI-50158-F Estimated Pricing

Qty Low High
1+ $7.98 $7.98
10+ $6.79 $6.79
25+ $6.36 $6.36
50+ $6.05 $6.05
100+ $5.76 $5.76
250+ $5.40 $5.40
500+ $5.14 $5.14
1,000+ $4.90 $4.90

Estimated market price range - modelled values for guidance only, not live distributor offers.

SI-50158-F Features

  • 1-port RJ45 jack with integrated magnetics.
  • Shielded with EMI finger for noise protection.
  • 90° right angle through hole mounting.
  • Yellow-green LED for status indication.
  • Gold-plated copper alloy contacts.

SI-50158-F Applications

  • 10/100 Base-T Ethernet networking equipment.
  • Industrial Ethernet switches and routers.
  • AutoMDIX capable interface designs.
  • Space-constrained PCB layouts.

SI-50158-F FAQs

6 frequently asked questions generated from this part’s specifications.
What type of connector is the Bel Fuse SI-50158-F?

It is a 1-port RJ45 jack with integrated magnetics.

What is the mounting style of this connector?

Through hole mounting with solder termination.

Is the SI-50158-F shielded?

Yes, it is shielded with an EMI finger.

What LED color does this jack have?

It has a yellow-green LED.

What Ethernet standards does this part support?

It supports 10/100 Base-T and AutoMDIX.

What is the orientation of the connector?

90° angle (right angle).
