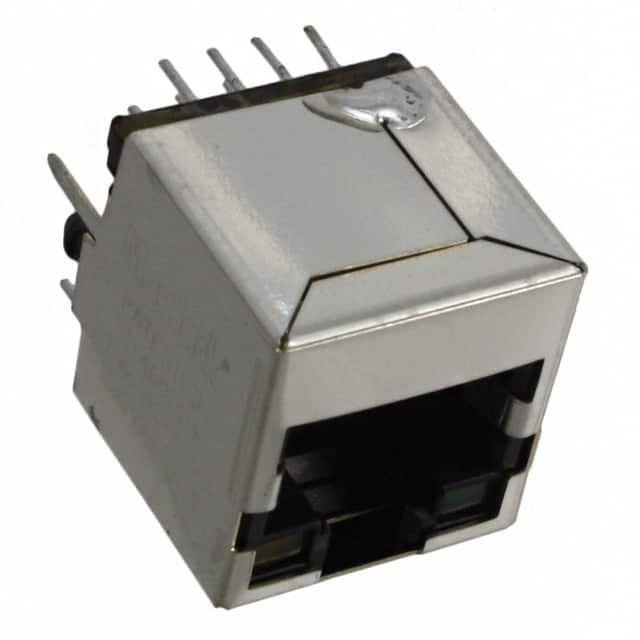

SI-46014-F Bel Fuse SI-46014-F is a vertical, shielded RJ45 modular connector jack with integrated magnetics for 10/100 Base-T applications. It features a single port with 4 cores, through hole solder termination, and a yellow-green LED indicator.
Mfr Part #:

SI-46014-F

Available from 1 distributors
Mfr Name: Bel Fuse
Bel Fuse
Bel Fuse SI-46014-F is a vertical, shielded RJ45 modular connector jack with integrated magnetics for 10/100 Base-T applications. It features a single port with 4 cores, through hole solder termination, and a yellow-green LED indicator.
✓ Total Stock: 240 pcs
$ Price Range: $3.46 - $5.65

SI-46014-F Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
240 pcs
On Request
240 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SI-46014-F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Connector Type
Contact Finish
Contact Material
Features
Height Above Board
LED Color
Mounting Type
Number of Cores per Jack
Number of Ports
Number of Rows
Operating Temperature
Orientation
Shielding
Tab Direction
Tape & Reel
Termination
Termination Style
View Similar Products (0)

SI-46014-F Description

Short technical summary and product information.

The Bel Fuse SI-46014-F is a modular connector jack with integrated magnetics, designed for 10/100 Base-T Ethernet applications. It is part of the Modular Connector Jacks With Magnetics category and provides a single RJ45 port with 4 cores.



Mechanically, the jack features through hole mounting with solder termination, vertical orientation, and a user-selectable tab direction. The shielded design offers EMI protection, and a board lock ensures secure attachment to the PCB. The contact material is copper alloy with a gold finish, and the height above board is 0.670 inches (17.02 mm).



The SI-46014-F supports 10/100 Base-T and AutoMDIX, with a yellow-green LED for status indication. It operates over a temperature range of -40°C to 85°C. Compliance data indicates RoHS3 compliance, REACH unaffected, and MSL Level 1, though these are unverified.

SI-46014-F Quick Information

Product Type: Modular Connector Jack with Magnetics
Canonical Name: Modular Connector Jack with Magnetics, RJ45, 1 Port, Through Hole, Shielded
Subcategory: With Magnetics

SI-46014-F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SI-46014-F Estimated Pricing

Qty Low High
1+ $5.65 $5.65
10+ $4.80 $4.80
25+ $4.50 $4.50
50+ $4.15 $4.15
80+ $3.94 $3.94
240+ $3.75 $3.75
560+ $3.63 $3.63
1,040+ $3.57 $3.57
2,560+ $3.46 $3.46

Estimated market price range - modelled values for guidance only, not live distributor offers.

SI-46014-F Features

  • 1-port RJ45 jack with integrated magnetics.
  • Through hole mounting with solder termination.
  • Shielded design for EMI protection.
  • Gold-plated copper alloy contacts.
  • Supports 10/100 Base-T and AutoMDIX.

SI-46014-F Applications

  • For 10/100 Base-T Ethernet applications.
  • Used with AutoMDIX capable devices.

SI-46014-F FAQs

7 frequently asked questions generated from this part’s specifications.
What is the mounting type for SI-46014-F?

Through hole mounting with solder termination.

How many ports does the SI-46014-F have?

One RJ45 port.

Is the SI-46014-F connector shielded?

Yes, it is shielded for EMI protection.

What is the orientation of this connector?

Vertical orientation.

What are the contact material and finish?

Copper alloy with gold finish.

What applications is the SI-46014-F designed for?

10/100 Base-T Ethernet and AutoMDIX.

What is the operating temperature range?

-40°C to 85°C.
