| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,013 pcs
|
1013 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| PSRR | |
| Protection Features | |
| Supplier Device Package | |
| Voltage | |
| Voltage Dropout (Max) |
The Sanken SI-3012LU-TL is an adjustable positive linear voltage regulator designed for various power management applications. It can output voltages between 1.5V and 15V, with a maximum input voltage of 17V. The device can supply a continuous output current of up to 250mA, with a typical dropout voltage of 0.5V at this current.
Key electrical features include a quiescent current of 150 µA and a Power Supply Rejection Ratio (PSRR) of 55dB at 100Hz to 120Hz. The regulator includes an enable control feature and protection against over-current and over-temperature conditions.

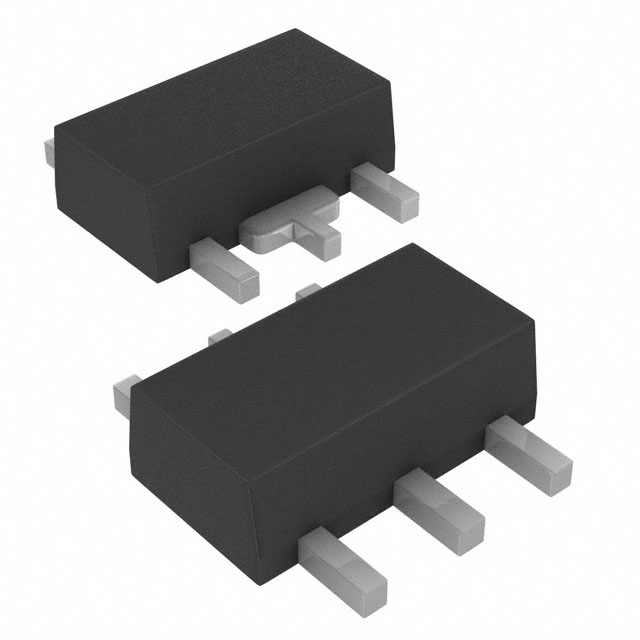

This component is housed in a surface-mount SOT-89-5/6 package, making it suitable for compact designs. It operates across a wide temperature range from -40°C to 125°C, ensuring reliability in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SI-3012LU-TL can provide a maximum output current of 250mA.
The output voltage can be adjusted from 1.5V to 15V.
The maximum input voltage for this regulator is 17V.
The typical dropout voltage at 250mA is 0.5V.
It includes over-current and over-temperature protection.
The operating temperature range is -40°C to 125°C.
It is supplied in a SOT-89-5/6 package suitable for surface mounting.
