| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | 04+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Package / Case | |
| Protection Features | |
| SVHC Present |

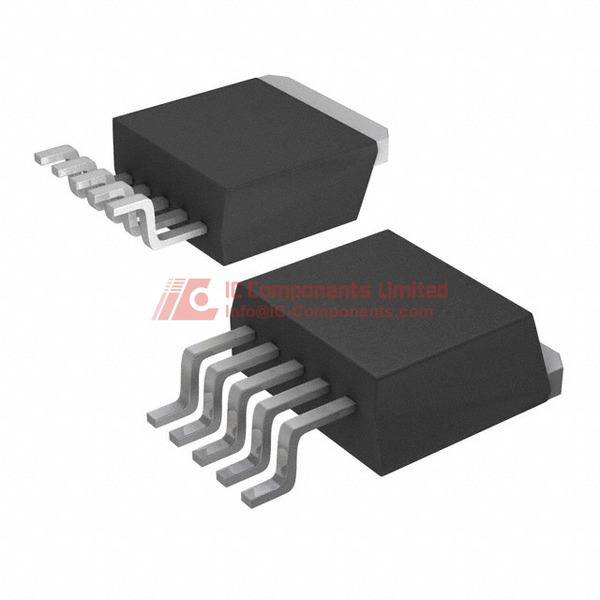

The Sanken SI-3011ZD is a linear voltage regulator designed for positive output voltage regulation. It offers an adjustable output voltage range and can supply up to 3A of current. The maximum input voltage for this device is 6V, with a typical voltage dropout of 0.6V at 3A.
This regulator is suitable for surface mount applications, utilizing a TO-263-5 package. It includes protection features such as over-current and over-temperature protection, enhancing its reliability in various electronic circuits. The operating temperature range is from -20°C to 100°C.
With a typical quiescent current of 1.5mA and a PSRR of 60dB at 100-120Hz, the SI-3011ZD is designed for efficient power management. Its adjustable output configuration provides flexibility for designers needing specific voltage levels within its operating parameters.
The output voltage is adjustable from 1.2V minimum to 5V maximum.
The maximum input voltage is 6V.
The maximum output current is 3A.
The maximum dropout voltage is 0.6V at 3A.
The operating temperature range is -20°C to 100°C.
The device is available in a TO-263-5, TO-263-6, D²Pak (5 Leads + Tab), or TO-263BA surface-mount package.
Yes, it includes over-current and over-temperature protection features.
