| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Interface | |
| Mounting Type | |
| Output Type | |
| SVHC Present | |
| Supply Voltage |

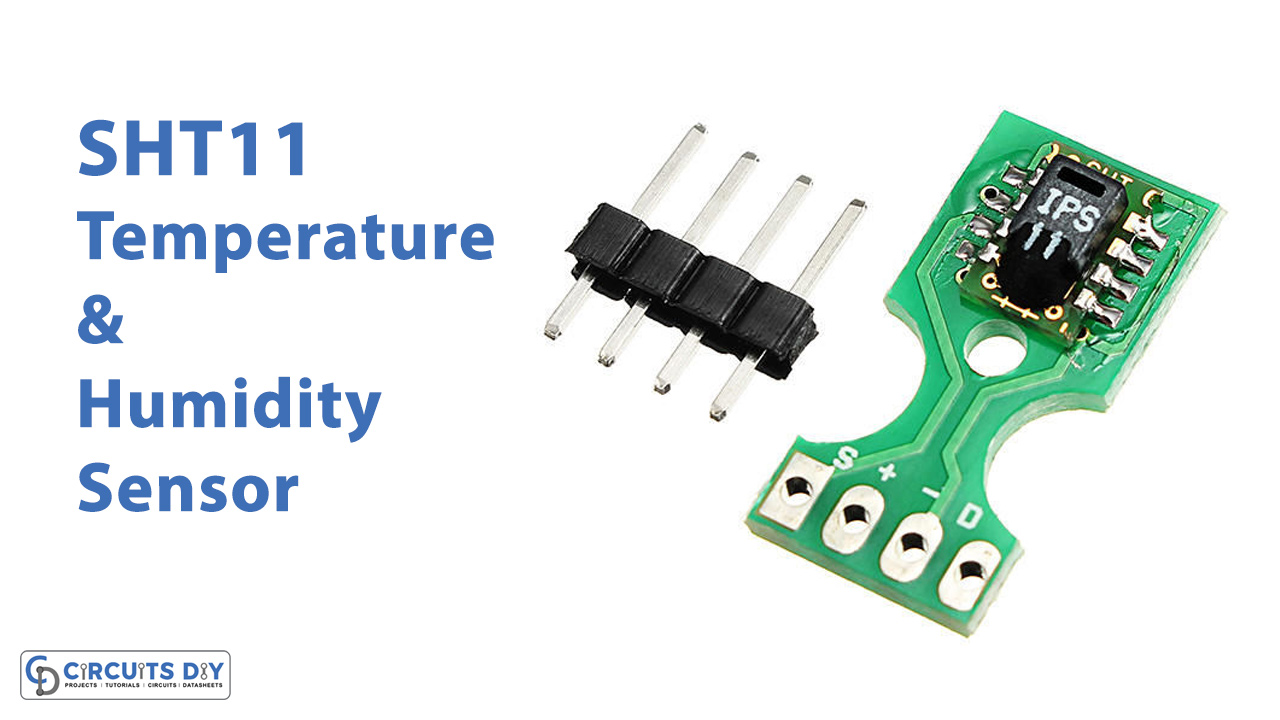

The SHT11 is a relative humidity and temperature sensor belonging to the SHT1x series by Sensirion. It provides a fully calibrated digital output, integrating sensor elements with signal processing. The sensor utilizes a unique capacitive element for humidity measurement and a band-gap sensor for temperature. It ensures excellent reliability and long-term stability.
Key specifications include a supply voltage range of 2.4V to 5.5V and an energy consumption of 80µW at 12-bit resolution, 3V, and 1 measurement per second. The operating range for relative humidity is 0-100%, and for temperature, it is -40°C to +125°C. The RH response time is 8 seconds (tau63%).
This sensor is housed in an SMD type package, making it re-flow solderable. Its digital output uses a 2-wire interface, with pins for GND, Data, SCK, and VDD. The compact size of 7.5 x 4.9 x 2.6 mm makes it suitable for various embedded systems.
Applications for the SHT11 include weather stations, automotive HVAC systems, dehumidifiers, and general embedded systems requiring environmental monitoring.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SHT11 operates from 2.4 to 5.5 V.
The SHT11 operates from -40 to +125°C.
The SHT11 measures relative humidity from 0 to 100% RH.
The response time is 8 seconds (tau63%).
The SHT11 provides a digital output via a 2-wire interface.
The SHT11 consumes 80 µW at 12-bit resolution, 3 V, and 1 measurement per second.
The SHT11 is available in a surface mount device (SMD) package measuring 7.5 x 4.9 x 2.6 mm.
