| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,366 pcs
|
1366 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel |

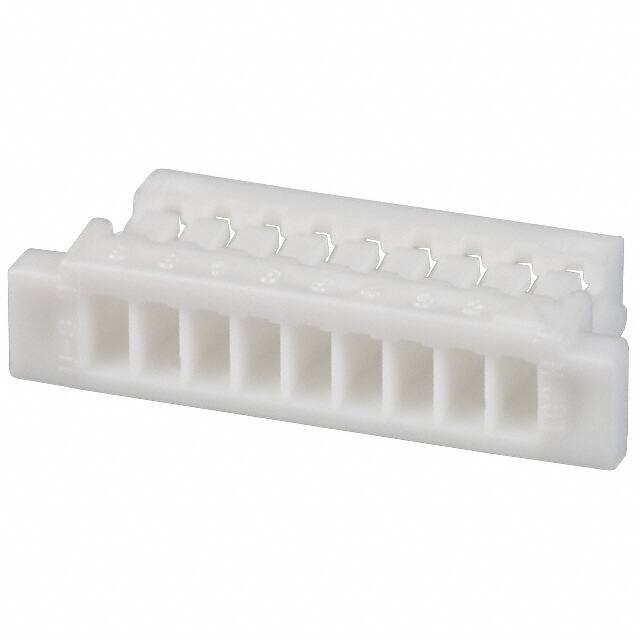

The JST SHR-09V-S-B is a 9 position receptacle housing from the SH series, featuring a 1.00mm pitch and female socket contacts. It is designed for free hanging (in-line) mounting and uses crimp termination for secure wire connections.
This housing is rated for an operating temperature range of -25°C to 85°C and is available in a natural color. The SH series is known for its compact, low-profile design and high-pressure contact system, providing reliable connections in space-constrained applications.
The housing accepts crimp-style female socket contacts and is suitable for use with 1.00mm pitch IDC connectors. It is commonly used in wire-to-board configurations where a secure and durable connection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.16 | $0.16 |
| 10+ | $0.14 | $0.14 |
| 25+ | $0.12 | $0.12 |
| 100+ | $0.12 | $0.12 |
| 250+ | $0.11 | $0.11 |
| 1,000+ | $0.10 | $0.10 |
| 2,000+ | $0.09 | $0.09 |
| 6,000+ | $0.09 | $0.09 |
| 10,000+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SHR-09V-S-B has 9 positions.
The pitch is 1.00mm (0.039 inches).
It uses free hanging (in-line) mounting.
The operating temperature range is -25°C to 85°C.
It supports crimp termination.
