| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

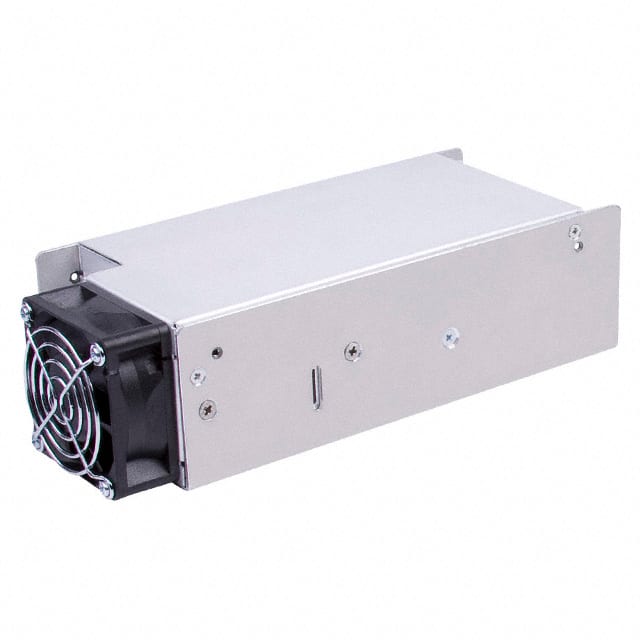

The XP Power SHP650PS36-EF is a 650W AC-DC power supply designed for industrial and commercial applications. It provides a regulated 36VDC output at 18A, along with a 5VDC standby supply and a 12VDC fan supply. The unit operates from a wide input range of 80 to 264VAC and features adjustable output, load sharing, remote On/Off control, and variable fan speed for noise reduction.
With a rugged construction and dimensions of 233.2mm x 101.6mm x 63.5mm, this enclosed power supply is suitable for chassis mounting. It offers an efficiency of 85% and operates within a temperature range of -40°C to 70°C with derating. Key electrical features include overvoltage, overtemperature, and overload protection, along with AC OK and active current share signals.
This power supply is compliant with standards such as 62368-1 and is suitable for ITE (Commercial) applications. Its design facilitates installation flexibility and integration into various systems requiring reliable power conversion.
The output is 36VDC at 18A, providing 650W.
The input voltage range is 80 to 264VAC.
The operating temperature range is -40°C to 70°C with derating.
It is a chassis-mount, enclosed unit.
Overvoltage protection (115-140% Vnom) and overload protection (110-145%).
Typical efficiency is 85% and hold-up time is 20ms.
Yes, it has remote on/off and active current share.
