| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

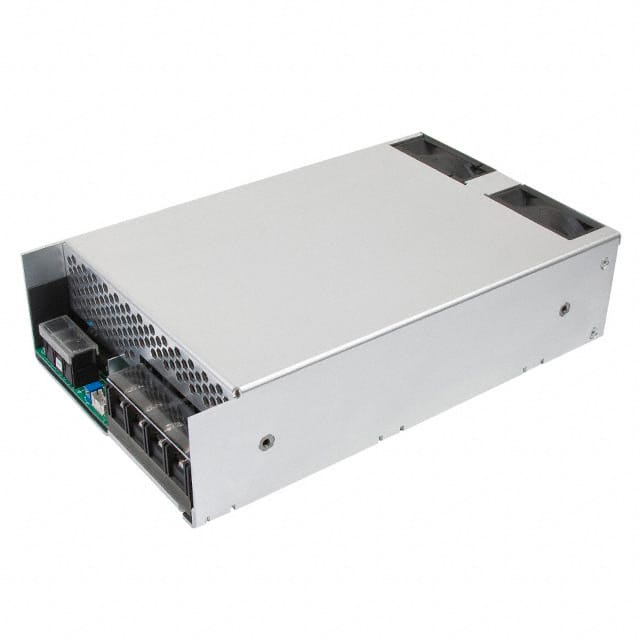

The XP Power SHP1000PS24 is a fan-cooled AC-DC power supply offering up to 1.2kW of output power. It features a regulated single output of 24VDC and a 5VDC 1A standby supply. The input range is 80 to 264VAC, with a power factor of 0.9 and typical efficiency of 85%.
Designed for industrial and analytical instrumentation applications, this power supply has a rugged construction and variable fan speed for noise reduction. Key features include AC OK signal, remote On/Off control, and active current share for parallel operation. The dimensions are 241 x 150 x 61mm, making it suitable for chassis mounting.
Operating temperature ranges from -20°C to +70°C. The unit complies with standards such as 62368-1 and carries CB approval. It also includes overvoltage, overload, and short circuit protection for reliable operation.
The SHP1000PS24 offers a 24VDC output voltage.
The maximum output current is 50A at <180VAC input and 42.0A at >180VAC input.
The input voltage range is 80 to 264VAC.
The operating temperature range is -20°C to +70°C.
The dimensions are 241 x 150 x 61mm.
Yes, the SHP1000PS24 features active current share for parallel operation.
It complies with standard 62368-1 and has CB approval.
