| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Differential Travel | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Pretravel | |
| Release Force | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

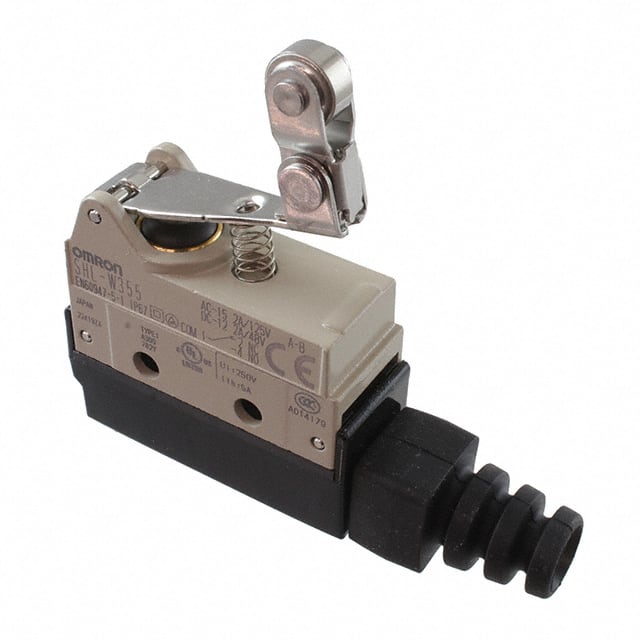

The Omron SHL-W355 is a versatile snap action switch with a Single Pole Double Throw (SPDT) circuit, capable of handling 10A at 125V AC and 5A at DC.
This switch is designed for chassis mounting and utilizes screw terminals for secure connections. It features a lever with a roller actuator, offering a pretravel of 8.0mm and overtravel of 3.0mm. The operating force is 400gf, with a release force of 80gf and a differential travel of 2.5mm.
With an operating temperature range of -10°C to 80°C and an IP67 ingress protection rating, the SHL-W355 is suitable for various environmental conditions. It is compliant with RoHS3 standards and has an MSL rating of 1.
This component is ideal for applications requiring reliable switching under demanding conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 125 V.
The operating temperature range is -10°C to 80°C.
The current rating is 10A (AC), 5A (DC).
It uses chassis mount.
The ingress protection rating is IP67 - Dust Tight, Waterproof.
