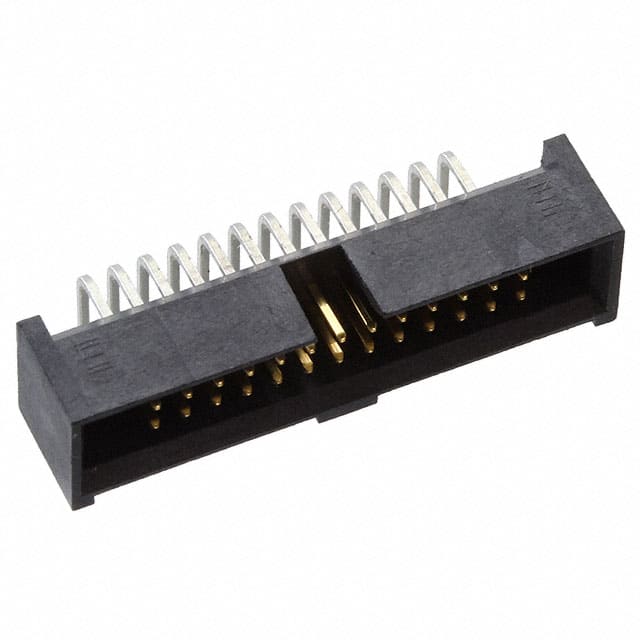

SHF-113-01-L-D-RA The Samtec Inc. SHF-113-01-L-D-RA is a 26-position, 2-row shrouded box header IDC with a 1.27mm pitch and right-angle mounting. It features a tin contact finish and LCP insulation.
Mfr Part #:

SHF-113-01-L-D-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec Inc. SHF-113-01-L-D-RA is a 26-position, 2-row shrouded box header IDC with a 1.27mm pitch and right-angle mounting. It features a tin contact finish and LCP insulation.
✓ Total Stock: 9,864 pcs
$ Price Range: $1.00

SHF-113-01-L-D-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
9,864 pcs
On Request
9864 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SHF-113-01-L-D-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Prop 65
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

SHF-113-01-L-D-RA Description

Short technical summary and product information.

The Samtec Inc. SHF-113-01-L-D-RA is a shrouded PCB mounting terminal strip designed for use with FFSD flat ribbon and FFTP twisted pair cable assemblies. This header features a 1.27mm (0.050") pitch and a 2-row configuration with 26 positions.



Key electrical and mechanical specifications include a 3A current rating and an operating temperature range of -55°C to 125°C. The insulation material is Liquid Crystal Polymer (LCP) in black, and the contact material is Phosphor Bronze with a tin finish. The termination style is solder, and it offers a push-pull fastening type.



This component is designed for through-hole, right-angle mounting. It is shrouded with 4 walls for protection and features a keying slot for polarization. The material flammability rating is UL94 V-0.



Environmental compliance includes Halogen Free (Br/Cl per JS-709C) and compliance with California Proposition 65 regarding Nickel. It is also rated Moisture Sensitivity Level 1 (MSL 1 Unlimited).

SHF-113-01-L-D-RA Quick Information

Product Type: Box Header IDC
Series: SHF
Canonical Name: Samtec Inc. SHF-113-01-L-D-RA 1.27mm/.050in Shrouded Box Header IDC, 26 Position, 2 Row, Right Angle
Subcategory: Shrouded Box Header

SHF-113-01-L-D-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SHF-113-01-L-D-RA Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

SHF-113-01-L-D-RA Features

  • 26-position, 2-row shrouded box header IDC.
  • 1.27mm (0.050") pitch for compact connections.
  • Right-angle through-hole mounting for PCB assembly.
  • 3A current rating and -55°C to 125°C operating temperature.
  • Tin contact finish and LCP insulation material.

SHF-113-01-L-D-RA Applications

  • Ideal for board-to-cable connections.
  • Used in flexible stacking IDC cable systems.
  • Suitable for applications requiring polarization.
  • Designed for reliable signal integrity.

SHF-113-01-L-D-RA FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Samtec SHF-113-01-L-D-RA have?

The SHF-113-01-L-D-RA has 26 positions.

What is the pitch of the SHF-113-01-L-D-RA connector?

The pitch of the SHF-113-01-L-D-RA connector is 1.27mm (0.050").

What is the current rating for the SHF-113-01-L-D-RA?

The current rating for the SHF-113-01-L-D-RA is 3A.

What is the operating temperature range for this Samtec header?

The operating temperature range for this header is -55°C to 125°C.

What type of mounting does the SHF-113-01-L-D-RA support?

The SHF-113-01-L-D-RA supports through-hole, right-angle mounting.

What is the contact finish on the SHF-113-01-L-D-RA?

The contact finish on the SHF-113-01-L-D-RA is Tin.

Is the SHF-113-01-L-D-RA RoHS compliant?

Yes, the SHF-113-01-L-D-RA is RoHS3 Compliant.
