SHF-110-01-L-D-TH SHF-110-01-L-D-TH is a shrouded box header from Samtec Inc. with 20 positions, 2 rows, 1.27mm pitch, through-hole termination, and tin contact finish.
Mfr Part #:

SHF-110-01-L-D-TH

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
SHF-110-01-L-D-TH is a shrouded box header from Samtec Inc. with 20 positions, 2 rows, 1.27mm pitch, through-hole termination, and tin contact finish.
✓ Total Stock: 3,000 pcs
$ Price Range: $1.53 - $2.43

SHF-110-01-L-D-TH Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SHF-110-01-L-D-TH Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Prop 65
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

SHF-110-01-L-D-TH Description

Short technical summary and product information.

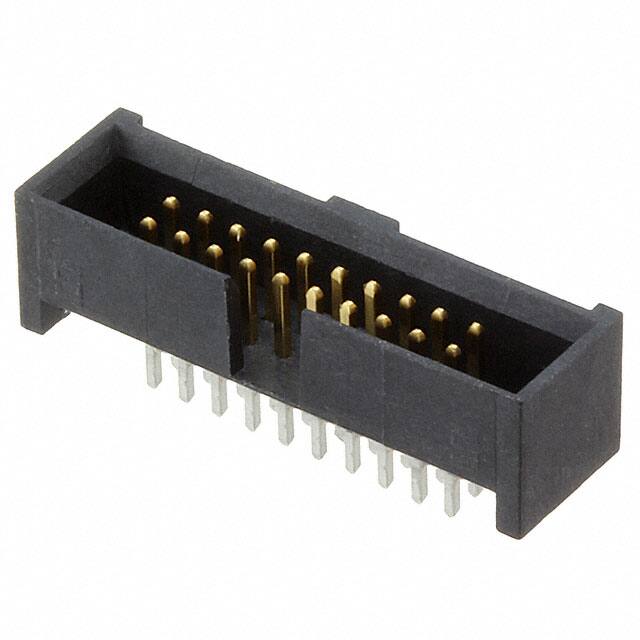

The SHF-110-01-L-D-TH is a shrouded box header from Samtec Inc., part of the SHF series designed for IDC ribbon cable systems. It features 20 positions arranged in 2 rows with a 1.27mm (0.050 inch) pitch and row spacing. The connector is through-hole mounted with solder termination, and the contacts are male pins made of phosphor bronze with a tin plating (10 microinches). The housing is a black liquid crystal polymer (LCP) with a 4-wall shrouded design, push-pull fastening, and a keying slot for polarization. It is rated for 3A per contact and operates over a temperature range of -55°C to 125°C. The insulation material is UL94 V-0 rated. This header mates with Samtec FFSD and FFTP ribbon cable assemblies, making it suitable for board-to-cable/wire applications. The contact length is 3.05mm, and the insulation height is 5.33mm.

SHF-110-01-L-D-TH Quick Information

Product Type: Shrouded Box Header
Series: SHF
Canonical Name: Shrouded Box Header, 20 Positions, 2 Rows, 1.27mm Pitch, Through Hole, Solder, Tin Contact Finish
Subcategory: Shrouded Box Header

SHF-110-01-L-D-TH Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

SHF-110-01-L-D-TH Estimated Pricing

Qty Low High
1+ $2.43 $2.43
60+ $2.17 $2.17
120+ $1.95 $1.95
510+ $1.72 $1.72
1,020+ $1.54 $1.54
5,010+ $1.53 $1.53

Estimated market price range - modelled values for guidance only, not live distributor offers.

SHF-110-01-L-D-TH Features

  • Shrouded 4-wall design for mating alignment.
  • 20 positions in 2 rows at 1.27mm pitch.
  • Through-hole mounting with solder termination.
  • Tin-plated phosphor bronze contacts.
  • UL94 V-0 rated LCP insulation.

SHF-110-01-L-D-TH Applications

  • Board-to-cable IDC ribbon cable connections.
  • Ideal for compact, high-density interconnects.
  • Used in industrial control and automation systems.
  • Suitable for data communication interfaces.

SHF-110-01-L-D-TH FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the SHF-110-01-L-D-TH have?

20 positions.

What is the pitch of this header?

1.27mm (0.050 inches).

What is the current rating of the SHF-110-01-L-D-TH?

3A per contact.

What is the mounting type for this header?

Through hole.

What is the operating temperature range?

-55°C to 125°C.
