SHF-110-01-L-D-RA Samtec SHF-110-01-L-D-RA is a 20 position, 2 row, 1.27mm pitch right angle shrouded box header with male pins. It features a push-pull fastening type, keying slot, and tin plated phosphor bronze contacts.
Mfr Part #:

SHF-110-01-L-D-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec SHF-110-01-L-D-RA is a 20 position, 2 row, 1.27mm pitch right angle shrouded box header with male pins. It features a push-pull fastening type, keying slot, and tin plated phosphor bronze contacts.
✓ Total Stock: 14 pcs
$ Price Range: $1.91 - $2.92

SHF-110-01-L-D-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request 1524 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SHF-110-01-L-D-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Prop 65
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

SHF-110-01-L-D-RA Description

Short technical summary and product information.

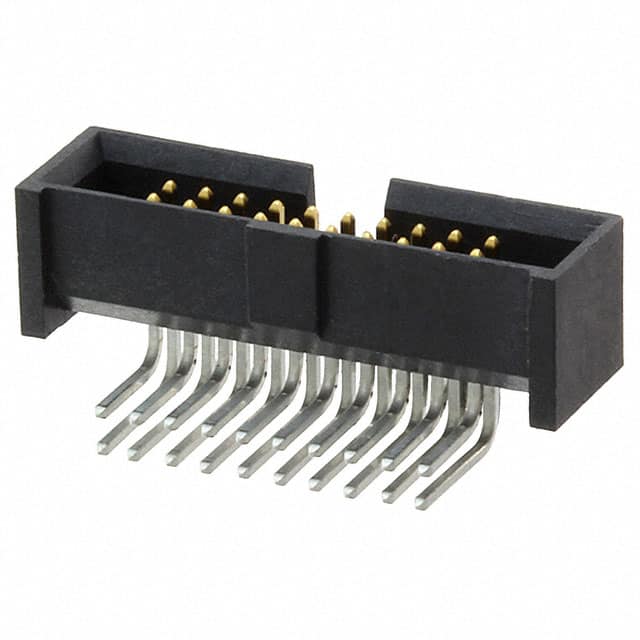

The Samtec SHF-110-01-L-D-RA is a 20 position, 2 row, 1.27mm pitch shrouded box header designed for board to cable/wire applications. It features a right angle through hole mounting style with solder termination and a 4-wall shrouded housing for robust mating.



The header is constructed with a black Liquid Crystal Polymer (LCP) insulator and phosphor bronze contacts with a tin finish (10.0µin). It includes a keying slot for polarization and has a push-pull fastening mechanism. The component is rated for 3A current and operates over a temperature range of -55°C to 125°C.



This header is part of the SHF series and mates with Samtec FFSD and FFTP cable assemblies. It is halogen free, RoHS compliant, and has a UL94 V-0 flammability rating.

SHF-110-01-L-D-RA Quick Information

Product Type: Shrouded Box Header
Series: SHF
Canonical Name: Samtec SHF-110-01-L-D-RA 20 Position 1.27mm Pitch Right Angle Shrouded Box Header
Subcategory: Shrouded Box Header

SHF-110-01-L-D-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable: Yes

SHF-110-01-L-D-RA Estimated Pricing

Qty Low High
1+ $2.92 $2.92
60+ $2.60 $2.60
120+ $2.52 $2.52
1,020+ $2.29 $2.29
2,010+ $2.11 $2.11
5,010+ $1.91 $1.91

Estimated market price range - modelled values for guidance only, not live distributor offers.

SHF-110-01-L-D-RA Features

  • 20 position, 2 row, 1.27mm pitch.
  • Right angle through hole mounting.
  • Shrouded 4-wall housing for protection.
  • Rated for 3A continuous current.
  • Operating temperature range -55°C to 125°C.

SHF-110-01-L-D-RA Applications

  • Board to cable/wire interconnects.
  • Mates with FFSD ribbon cable assemblies.
  • Mates with FFTP twisted pair cable assemblies.
  • Suitable for compact electronic enclosures.

SHF-110-01-L-D-RA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the SHF-110-01-L-D-RA?

The pitch is 1.27mm (0.050").

How many positions does the SHF-110-01-L-D-RA have?

It has 20 positions arranged in 2 rows.

What is the current rating of the SHF-110-01-L-D-RA?

The current rating is 3A.

What is the mounting type for this header?

It is a through hole, right angle mounting type with solder termination.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

Is the SHF-110-01-L-D-RA RoHS compliant?

RoHS compliance is unverified but the manufacturer states it is RoHS compliant.

What is the contact material and finish?

The contact material is phosphor bronze with a tin finish of 10.0µin (0.25µm).
