Mfr Part #:

SHF-108-01-L-D-SM-K-TR

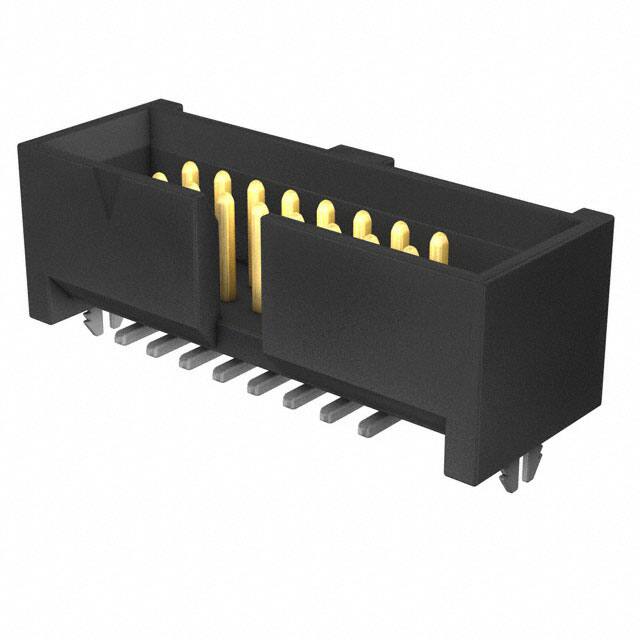

Samtec SHF-108-01-L-D-SM-K-TR is a 16 position, 2 row, 1.27mm pitch shrouded box header with male pins, surface mount, rated for 3A and -55°C to 125°C.

✓ Total Stock: 3,500 pcs

$ Price Range: $1.87 - $2.70

SHF-108-01-L-D-SM-K-TR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	3,500 pcs On Request	3500 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SHF-108-01-L-D-SM-K-TR Description

Short technical summary and product information.

The Samtec SHF-108-01-L-D-SM-K-TR is a 16 position, 2 row, 1.27mm pitch shrouded box header designed for board-to-cable/wire applications. It features male square pins with tin contact finish (10.0µin) on phosphor bronze contacts, and a black liquid crystal polymer (LCP) insulator with UL94 V-0 flammability rating.

This surface mount header includes a keying slot and pick-and-place feature for automated assembly. It is rated for 3A current and operates over a temperature range of -55°C to 125°C. The connector is packaged in tape and reel with a standard quantity of 450 pieces.

The SHF series mates with Samtec FFSD flat ribbon and FFTP twisted pair cable assemblies. It is RoHS3 compliant, REACH unaffected, halogen free, and has MSL 1 unlimited.

SHF-108-01-L-D-SM-K-TR Quick Information

Product Type: Shrouded Box Header

Series: SHF

Canonical Name: Samtec SHF Series 16 Position 2 Row 1.27mm Pitch Shrouded Box Header, Surface Mount, Male Pin

Subcategory: Shrouded Box Header

SHF-108-01-L-D-SM-K-TR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

SHF-108-01-L-D-SM-K-TR Estimated Pricing

Qty	Low	High
1+	$2.70	$2.70
50+	$2.57	$2.57
100+	$2.38	$2.38
450+	$2.38	$2.38
1,800+	$2.18	$2.18
4,950+	$1.87	$1.87

Estimated market price range - modelled values for guidance only, not live distributor offers.

SHF-108-01-L-D-SM-K-TR Features

16 position, 2 row, 1.27mm pitch.
Shrouded box header with 4-wall design.
Surface mount with pick-and-place feature.
Rated for 3A and -55°C to 125°C.
RoHS3, REACH, and halogen free compliant.

SHF-108-01-L-D-SM-K-TR Applications

Board-to-cable/wire interconnects.
IDC ribbon cable systems.
Twisted pair cable assemblies.
Automated surface mount assembly.

SHF-108-01-L-D-SM-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the SHF-108-01-L-D-SM-K-TR have?

16 positions in 2 rows.

What is the pitch of this connector?

1.27mm (0.050").

What is the current rating?

3A.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Tin, 10.0µin (0.25µm) thickness.

Is this connector RoHS compliant?

Yes, RoHS3 compliant.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	3.05mm (0.120")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Push-Pull
Features	Keying Slot, Pick and Place
Halogen Free	Yes
Insulation Color	Black
Insulation Height	5.33mm (0.210")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	1.27 mm
Lead Style	Surface Mount With Polyimide Film
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	1.27mm (0.050")
Prop 65	WARNING: Risk of Cancer & Reproductive Harm (Nickel)
Row Spacing	0.050" (1.27mm)
SVHC Present	Not Present
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Tape & Reel	Yes
Termination	Solder
