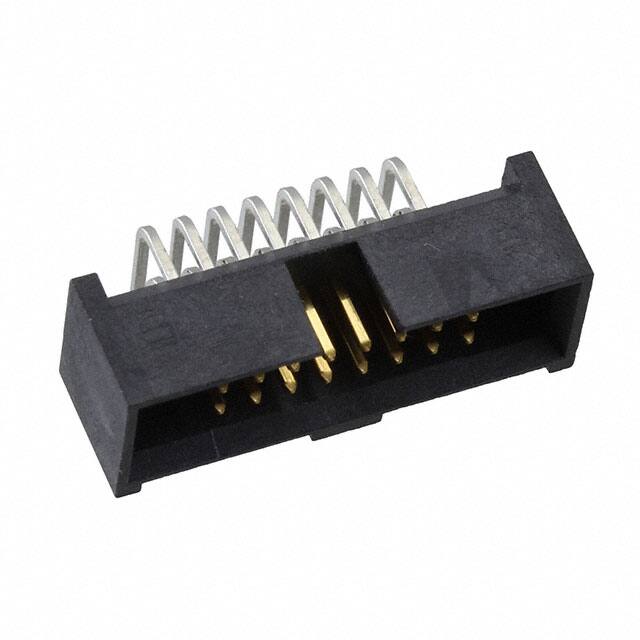

SHF-108-01-L-D-RA 16-position, 2-row right-angle shrouded header from Samtec. Features 1.27mm pitch, through-hole solder termination, and tin-plated phosphor bronze contacts.
Mfr Part #:

SHF-108-01-L-D-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
16-position, 2-row right-angle shrouded header from Samtec. Features 1.27mm pitch, through-hole solder termination, and tin-plated phosphor bronze contacts.
✓ Total Stock: 16 pcs
$ Price Range: $1.85 - $3.10

SHF-108-01-L-D-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
16 pcs
On Request
16 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SHF-108-01-L-D-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

SHF-108-01-L-D-RA Description

Short technical summary and product information.

The Samtec SHF-108-01-L-D-RA is a 16-position, 2-row right-angle shrouded header designed for board-to-cable/wire applications. It features a 1.27mm pitch and a 4-wall shrouded housing made of black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. The contacts are phosphor bronze with tin plating (10.0µin/0.25µm thickness), providing reliable electrical performance.



This connector supports a current rating of 3A and operates over a temperature range of -55°C to 125°C. The through-hole, right-angle mounting style with solder termination simplifies PCB assembly. A keying slot is included for polarization to prevent mis-mating.



The push-pull fastening mechanism ensures secure connection while allowing easy disconnection. The contact length is 3.05mm and insulation height is 5.60mm, making it suitable for compact designs.

SHF-108-01-L-D-RA Quick Information

Product Type: Header
Series: SHF
Canonical Name: 16 Position, 2 Row, Right Angle, Shrouded Header, 1.27mm Pitch, Male Pins
Subcategory: Shrouded Header

SHF-108-01-L-D-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SHF-108-01-L-D-RA Estimated Pricing

Qty Low High
1+ $3.10 $3.10
34+ $2.47 $2.47
102+ $2.38 $2.38
1,020+ $2.17 $2.17
2,006+ $1.99 $1.99
5,032+ $1.85 $1.85

Estimated market price range - modelled values for guidance only, not live distributor offers.

SHF-108-01-L-D-RA Features

  • 16-position, 2-row right-angle header.
  • 1.27mm pitch with push-pull fastening.
  • Shrouded 4-wall design for mating reliability.
  • Rated for 3A current and -55 to 125°C.
  • Tin-plated phosphor bronze contacts.

SHF-108-01-L-D-RA Applications

  • Board-to-cable/wire connections in compact electronics.
  • Suitable for automated assembly with keying slot.
  • Used in industrial control and instrumentation.
  • Ideal for data communication equipment interfaces.

SHF-108-01-L-D-RA FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

16 positions arranged in 2 rows.

What is the pitch of this connector?

1.27mm (0.050").

What is the current rating?

3A.

What is the mounting type?

Through-hole, right angle with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What materials are used for the contacts and insulator?

Phosphor bronze contacts with tin plating; insulator is black Liquid Crystal Polymer (LCP) with UL94 V-0 rating.

Does this header have any keying or polarization features?

Yes, it includes a keying slot for polarization.
