| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
152 pcs
|
152 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

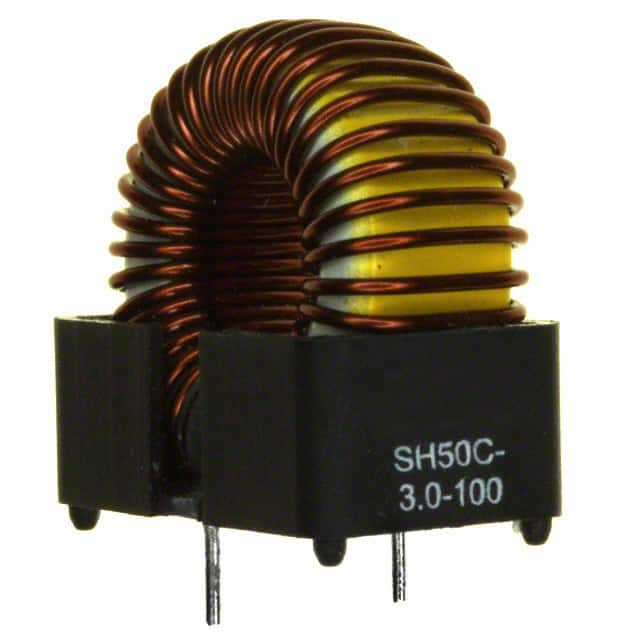

This Amgis, LLC SH50C-3.0-100 is a toroidal fixed inductor designed for various electronic applications. It offers an inductance value of 100µH with a tight tolerance of ±20% and can handle a current rating of up to 3A.
The inductor has a maximum DC resistance (DCR) of 40mOhm, ensuring efficient operation. It is designed for through-hole mounting and comes in a radial, vertical open package, making it suitable for integration into printed circuit boards.
With an operating temperature range from -40°C to 125°C, this component is built to withstand demanding environmental conditions. It is compatible with National Semiconductor's Simple Switcher part numbers LM2574, LM2475, and LM2576, indicating its suitability for power supply and switching regulator designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical inductance is 100µH, measured at 10kHz with 10mV.
The maximum current rating is 3A.
The maximum DC resistance is 40mOhm.
The operating temperature range is -40°C to 125°C.
It is a through-hole component in a radial, vertical open package.
The inductance tolerance is ±20%.
No, it is an unshielded inductor.
