SH01D0512A The SH01D0512A is an isolated DC-DC converter from Delta Electronics providing dual ±12V outputs at 42mA each, with 1W total power. It features 1500VDC isolation and operates over -40°C to +85°C.
Mfr Part #:

SH01D0512A

Available from 1 distributors
Mfr Name: Delta Electronics
Delta Electronics
The SH01D0512A is an isolated DC-DC converter from Delta Electronics providing dual ±12V outputs at 42mA each, with 1W total power. It features 1500VDC isolation and operates over -40°C to +85°C.
✓ Total Stock: 10 pcs

SH01D0512A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SH01D0512A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
SVHC Present
Storage Temperature
Tape & Reel
Temperature Coefficient
Type
Voltage
Width
View Similar Products (0)

SH01D0512A Description

Short technical summary and product information.

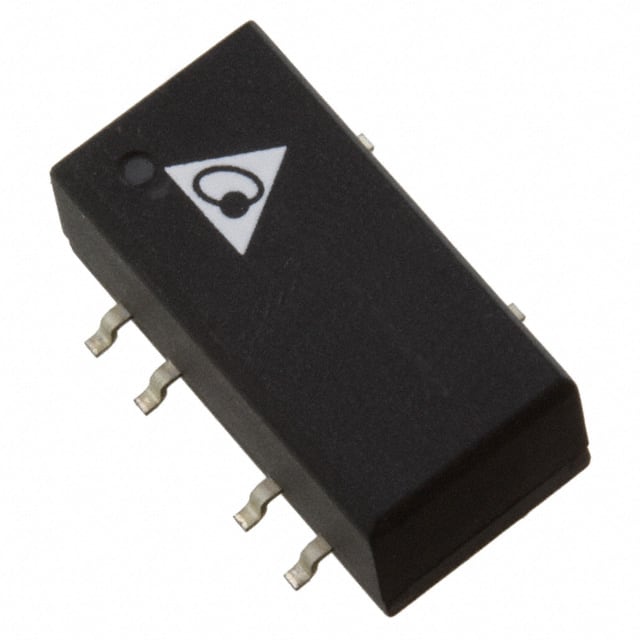

The SH01D0512A is a 1W isolated DC-DC converter in an SMD package from Delta Electronics. It provides dual ±12V outputs with 42mA per output, suitable for powering analog circuits requiring bipolar supplies.



Key specifications: Input voltage range 4.5V to 5.5V (5V nominal). Efficiency 78% typical. Isolation voltage 1500VDC. Ripple and noise 60mV p-p typical, 120mV p-p max. Short circuit protection with 0.5s max shutdown. Operating temperature -40°C to +85°C.



Package and mounting: 8-SMD module with 5 leads, surface mount. Dimensions 13.7mm x 8.0mm x 7.0mm. Moisture sensitivity level 2. RoHS compliant and lead-free. Safety approvals UL/cUL 62368-1 and 60950-1.



Applications: Suitable for medical equipment, industrial controls, and any application requiring isolated bipolar power from a 5V rail.

SH01D0512A Quick Information

Product Type: Isolated DC-DC Converter
Series: SH01D
Canonical Name: Delta Electronics SH01D0512A Isolated DC-DC Converter, ±12V Output, 1W
Subcategory: 1W DC-DC Converter

SH01D0512A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Moisture Sensitivity Level 2
REACH Status: REACH Unaffected
Lead Free: Lead Free

SH01D0512A Features

  • Dual ±12V outputs at 42mA each.
  • 1500VDC input-to-output isolation.
  • Wide -40°C to +85°C operating range.
  • Surface mount 8-SMD module package.
  • RoHS compliant and lead-free.

SH01D0512A Applications

  • Ideal for medical equipment requiring isolated power.
  • Powers analog circuits needing bipolar supplies.
  • Used in industrial control systems.
  • Suitable for battery-powered portable devices.

SH01D0512A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range?

4.5V to 5.5V (5V nominal).

What is the output voltage and current?

Dual ±12V outputs, each rated at 42mA.

What is the isolation voltage?

1500VDC for 60 seconds.

What is the operating temperature range?

-40°C to +85°C.

What package is it available in?

8-SMD Module, 5 Leads, surface mount.

Is it RoHS compliant?

Yes, RoHS3 compliant and lead-free.

What safety approvals does it have?

UL/cUL 62368-1 and UL/cUL 60950-1.
