| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
98 pcs
|
98 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Class | |
| Color | |
| Fluid Resistance | |
| Halogen Free | |
| Insulation | |
| Insulation Material | |
| Number of Conductors | |
| Number of Wire Entries | |
| Operating Temperature Range | |
| Terminal Type | |
| Termination | |
| Termination Method | |
| Wire Gauge |

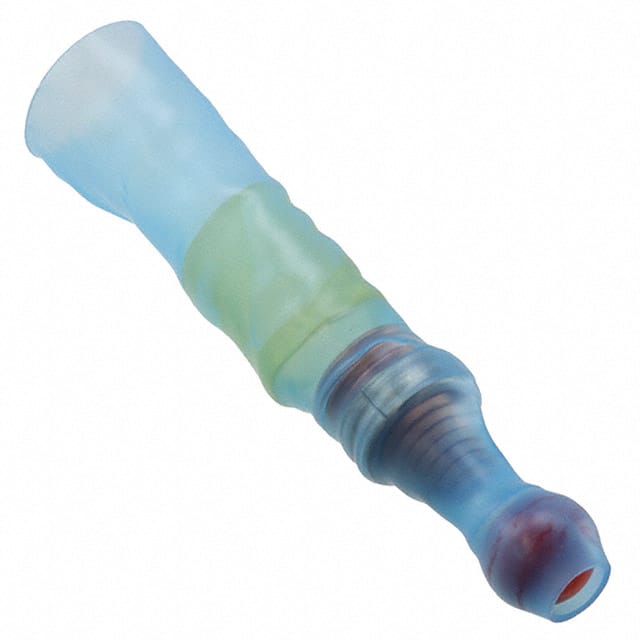

The TE Connectivity SGRS-2 is a SolderGrip splice connector designed for terminating stranded wires. It is suitable for wire sizes ranging from 12 to 14 AWG (4-2 mm² or 4000-8000 CMA).
This splice features a closed barrel design and a solder termination method, ensuring a secure connection. The insulation is made from heat shrink radiation-crosslinked modified polyvinylidene fluoride, providing robust protection. It is fully insulated and sealable, offering Yes fluid resistance in immersion conditions.
The operating temperature range for the SGRS-2 is -40 to 125 °C, with a cable temperature rating of 125 °C. The splice has a length of 37.7 mm and a maximum insulation diameter of 4.5 mm. It is designed with 4 conductors and is not government qualified.
Packaged in boxes of 100, this splice connector is a reliable choice for various industrial and automotive applications requiring durable wire termination.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SGRS-2 supports wire sizes from 12 to 14 AWG, which is equivalent to 4-2 mm² or 4000-8000 CMA.
The operating temperature range for the SGRS-2 is -40 to 125 °C.
The SGRS-2 uses heat shrink radiation-crosslinked modified polyvinylidene fluoride insulation.
Yes, the SGRS-2 splice connector is sealable.
The SGRS-2 is packaged in boxes of 100.
