| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Flux Type | |
| Insulation | |
| Lead Style | |
| Number of Wire Entries | |
| Operating Temperature Range | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

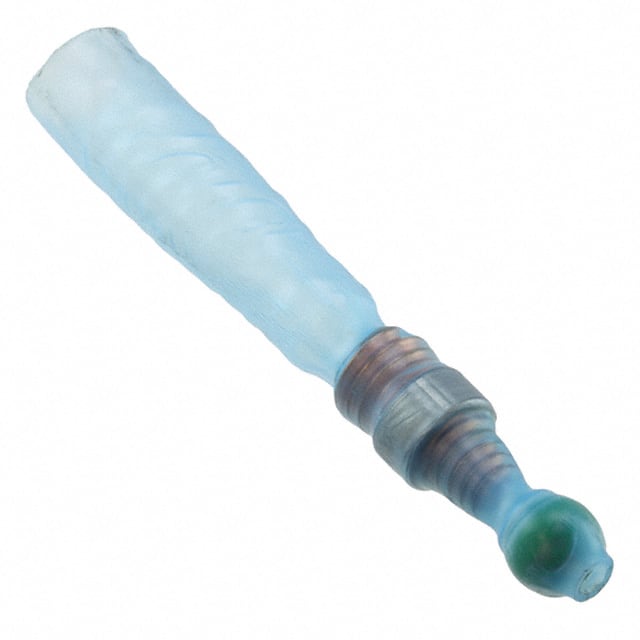

The TE Connectivity SolderGrip SGRP-1 is a controlled soldering device designed for stub splicing stranded wires with bare copper conductors. It uses a twist-on wire cap terminal with a fully insulated heat-shrink sleeve made from radiation cross-linked modified polyvinylidene fluoride.
The device contains a Sn60 solder preform with ROM1 flux per ANSI-J-STD-006 and ANSI-J-STD-004. The operating temperature range is -40°C to +125°C (Class 3A). It accepts wire gauges from 1400 to 4800 CMA and has a single wire entry. The product length is 38.3 mm and the insulation sleeve is transparent blue with a green stripe end closure ball.
| Qty | Low | High |
|---|---|---|
| 1,400+ | $1.15 | $1.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to +125°C (Class 3A).
1400 to 4800 CMA.
Sn60 solder per ANSI-J-STD-006 with ROM1 flux per ANSI-J-STD-004.
Radiation cross-linked modified polyvinylidene fluoride, heat-shrinkable, transparent blue.
1.
