| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,421 pcs
|
3421 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Noise | |
| Operating Temperature | |
| Settling Time | |
| Slew Rate | |
| Supply Current | |
| Supply Voltage | |
| Tape & Reel |

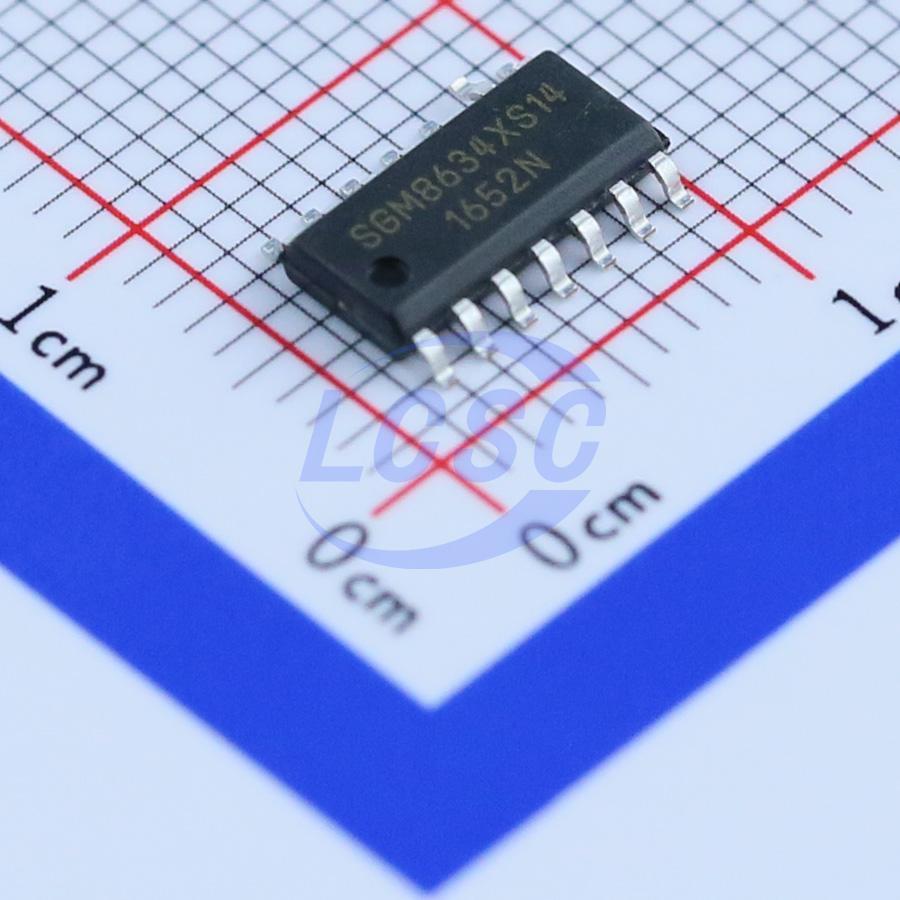

The SG Micro Corp SGM8634 is a quad, low voltage, low noise, and low power operational amplifier designed to operate from a 2.5V to 5.5V single supply. It consumes a low quiescent current of 470μA per amplifier at 5V. This amplifier boasts a high gain-bandwidth product of 6MHz and a slew rate of 3.7V/μs, making it suitable for various applications.
The SGM8634 features a maximum input offset voltage of 3.5mV. Its input common-mode voltage can go within 0.1V below the negative rail, and the output swing is rail-to-rail even with heavy loads. The device operates across an extended industrial temperature range of -40℃ to +125℃.
Available in Green TSSOP-14 and SOIC-14 packages, the SGM8634 is designed for applications such as sensors, audio, active filters, A/D converters, communications, test equipment, cellular phones, laptops, PDAs, photodiode amplification, and battery-powered instrumentation.
The SGM8634 operates from a 2.5V to 5.5V single supply.
The typical supply current is 470μA per amplifier at 5V.
The maximum input offset voltage is 3.5mV.
The SGM8634 has a high gain-bandwidth product of 6MHz.
The slew rate of the SGM8634 is 3.7V/μs.
The SGM8634 is specified for an operating temperature range of -40℃ to +125℃.
The SGM8634 is available in SOIC-14 and TSSOP-14 packages.
