| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,264 pcs
|
2264 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Input Impedance | |
| Mounting Type | |
| Noise | |
| Package / Case | |
| Slew Rate | |
| Tape & Reel |
The SGM8273-1AXN5G/TR from SG Micro Corp is a high-voltage, low-noise operational amplifier designed for precision applications. It offers rail-to-rail input and output voltage swing, making it suitable for a wide range of signal conditioning tasks.
This amplifier operates from a wide supply voltage range, supporting 3.3V to 36V single supply or ±1.65V to ±18V dual power supplies. Key electrical characteristics include a low offset voltage of 1mV maximum, a low noise density of 9nV/√Hz at 1kHz, a gain-bandwidth product of 4MHz, and a high slew rate of 6V/µs.

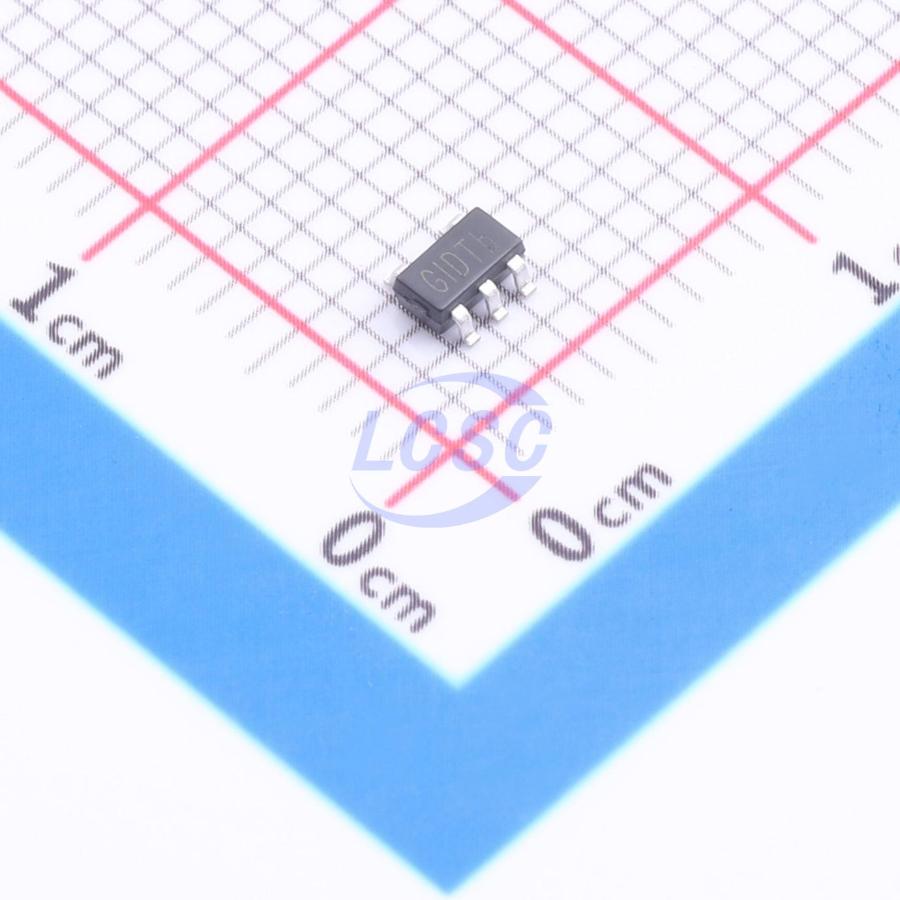

The SGM8273-1AXN5G/TR is specified for an extended operating temperature range of -40℃ to +125℃. It is available in a compact SOT-23-5 surface-mount package, supplied on tape and reel for automated assembly.
Applications for this operational amplifier include high impedance sensors, photodiode amplifiers, high-end professional audio equipment, and DAC output amplification.
The SGM8273-1AXN5G/TR can operate from a 3.3V to 36V single supply or from ±1.65V to ±18V dual power supplies.
The maximum offset voltage for the SGM8273-1AXN5G/TR is 1mV.
The noise level is 9nV/√Hz at 1kHz.
The gain-bandwidth product is 4MHz.
The slew rate is 6V/µs.
The operating temperature range is -40℃ to +125℃.
The SGM8273-1AXN5G/TR is available in a SOT-23-5 package.
