| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,235 pcs
|
3235 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature Range | |
| PSRR | |
| SVHC Present | |
| Supply Current | |
| Tape & Reel |

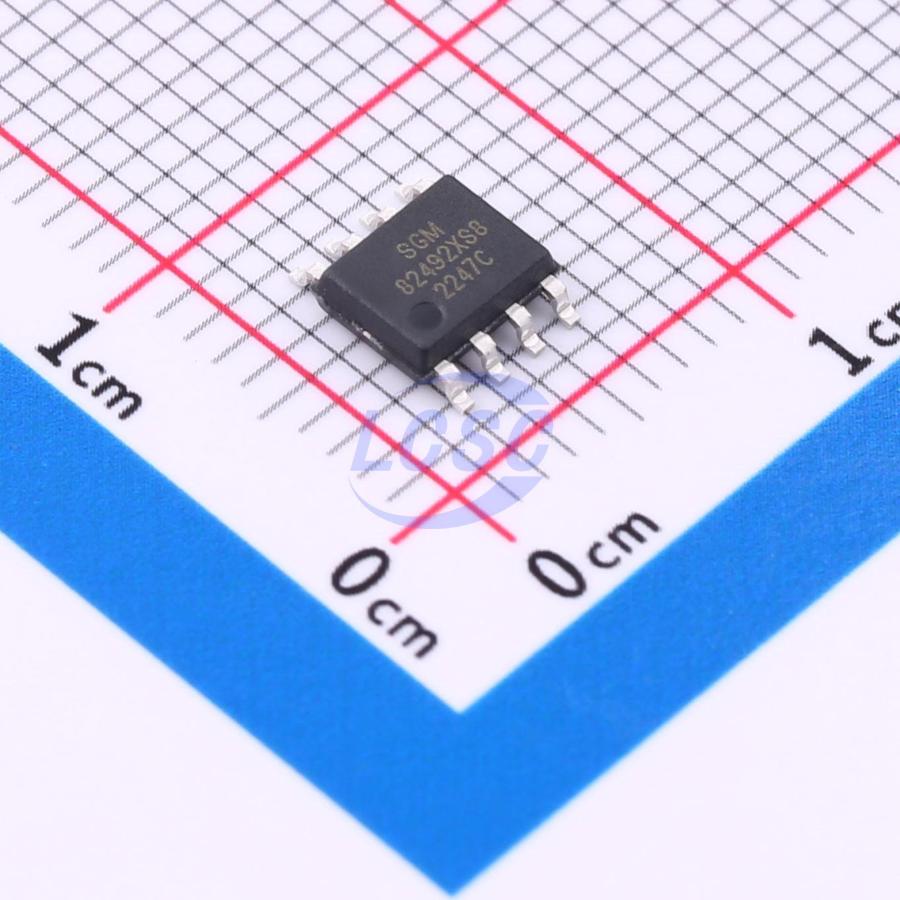

The SGM8249-2XS8G/TR from SG Micro Corp is a dual, high-voltage, low-noise, and high-precision operational amplifier. It is designed to operate from a single supply of 4.5V to 36V or dual supplies from ±2.25V to ±18V, providing rail-to-rail output operation.
Key electrical characteristics include a low offset voltage of 10μV maximum, an open-loop voltage gain of 150dB typical, and a PSRR of 150dB typical. The amplifier boasts a gain-bandwidth product of 8MHz and an input voltage noise density of 10nV/√Hz at 1kHz. Its overload recovery time is a rapid 0.7μs.
This operational amplifier is suitable for applications requiring precision and long-term stability, such as temperature measurements, pressure and position sensors, strain gauge amplifiers, and medical instrumentation. The SGM8249-2 is available in a green SOIC-8 package, rated for an operating temperature range of -40°C to +125°C.
It supports both single and dual power supply configurations, with a low supply current of 0.85mA per amplifier typical. The device is designed for surface mount applications.
It operates from 4.5V to 36V with a single supply or ±2.25V to ±18V with dual supplies.
-40°C to +125°C.
8 MHz typical.
10 μV maximum.
SOIC-8 surface mount package.
0.85 mA typical per amplifier.
140 dB typical.
