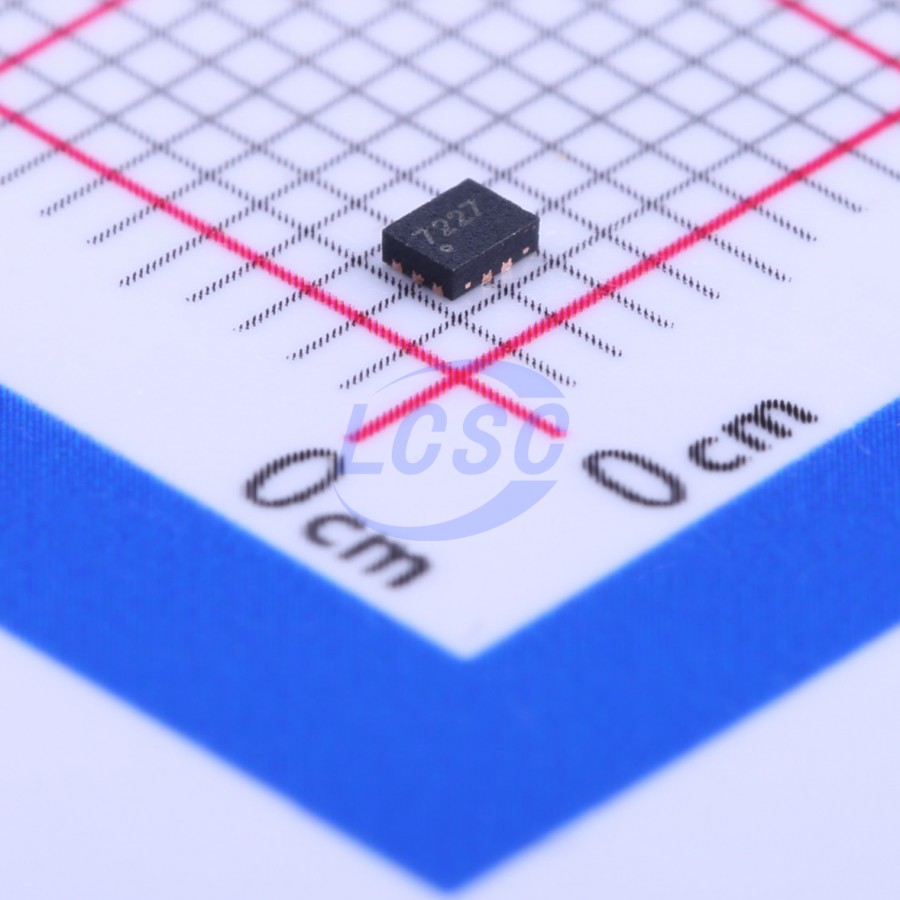

SGM7227YUWQ10G/TR The SG Micro Corp SGM7227YUWQ10G/TR is a DPDT analog switch designed for high-speed USB 2.0 applications. It operates from a 1.8V to 4.3V supply and features a wide bandwidth.
Mfr Part #:

SGM7227YUWQ10G/TR

Available from 2 distributors
Mfr Name: SG Micro Corp
SG Micro Corp
The SG Micro Corp SGM7227YUWQ10G/TR is a DPDT analog switch designed for high-speed USB 2.0 applications. It operates from a 1.8V to 4.3V supply and features a wide bandwidth.
✓ Total Stock: 5,574 pcs

SGM7227YUWQ10G/TR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
4,253 pcs
On Request
4253 pcs On Request 1 On Request On Request 19+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,321 pcs
On Request
1321 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SGM7227YUWQ10G/TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Crosstalk
Halogen Free
Lead Style
Operating Temperature
Supply Voltage
Tape & Reel
View Similar Products (0)

SGM7227YUWQ10G/TR Description

Short technical summary and product information.

The SGM7227YUWQ10G/TR from SG Micro Corp is a Double-Pole/Double-Throw (DPDT) analog switch. It is engineered for high-speed signal routing, supporting USB 2.0 at up to 480Mbps.



This device operates from a single power supply ranging from 1.8V to 4.3V. Key electrical characteristics include a typical on-resistance of 5Ω at 3.0V, a high off-isolation of -51dB at 250MHz, and a low crosstalk of -26dB at 250MHz. It boasts a -3dB bandwidth of 500MHz and fast switching times, with tON typically 20ns and tOFF typically 18ns at 3.3V.



The SGM7227 features break-before-make switching and rail-to-rail input and output operation. It also includes power-off and power-on protection to enhance system reliability. The switch is capable of withstanding VBUS shorts to D+ or D- pins, whether powered on or off.



Available in a compact UTQFN-1.8x1.4-10L package, the SGM7227YUWQ10G/TR is suitable for space-constrained applications. It operates within an ambient temperature range of -40°C to +85°C.

SGM7227YUWQ10G/TR Quick Information

Product Type: Analog Switch
Canonical Name: SGM7227 DPDT Analog Switch
Subcategory: DPDT Analog Switch

SGM7227YUWQ10G/TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

SGM7227YUWQ10G/TR Features

  • High speed USB 2.0 (480Mbps) DPDT analog switch.
  • Wide supply voltage range: 1.8V to 4.3V.
  • 500MHz bandwidth with low on-resistance.
  • Break-before-make switching for reliability.
  • Operates from -40°C to +85°C.

SGM7227YUWQ10G/TR Applications

  • Routes signals for USB 2.0.
  • Suitable for cellular phones.
  • Used in computer peripherals.
  • Ideal for portable equipment.
  • Applicable to battery-powered systems.

SGM7227YUWQ10G/TR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the SGM7227YUWQ10G/TR?

The supply voltage range is 1.8V to 4.3V.

What is the typical on-resistance of the SGM7227YUWQ10G/TR?

The typical on-resistance is 5Ω at 3.0V.

What is the -3dB bandwidth of this analog switch?

The -3dB bandwidth is 500MHz.

What is the operating temperature range for the SGM7227YUWQ10G/TR?

The operating temperature range is -40°C to +85°C.

What package is the SGM7227YUWQ10G/TR available in?

It is available in the UTQFN-1.8x1.4-10L package.

Does the SGM7227YUWQ10G/TR support break-before-make switching?

Yes, it features break-before-make switching.
